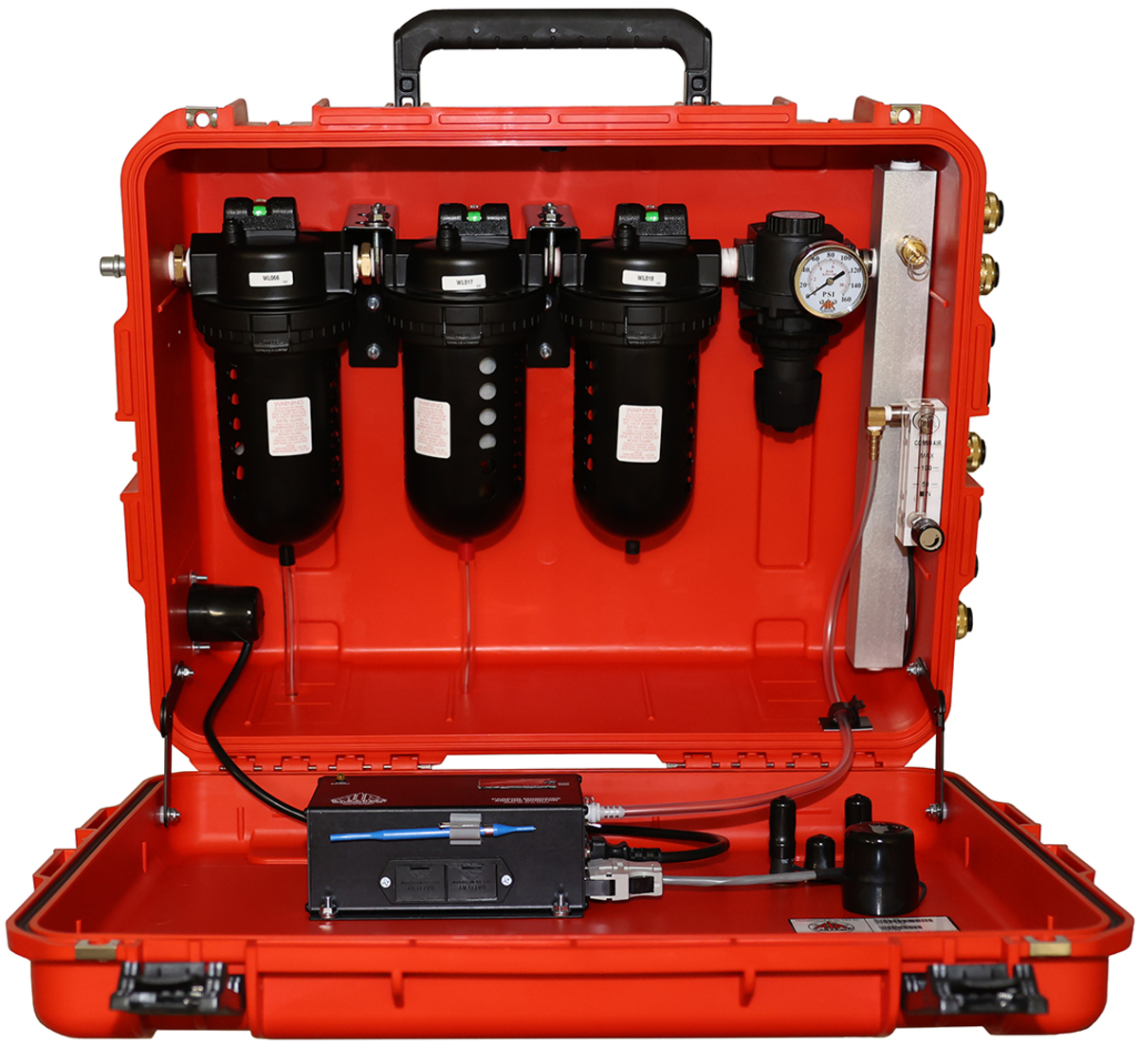

Air Systems International Breather Box 100 CFM Air Filtration System

Item Details

• Air Systems International 100 CFM Breather Box� portable air filtration system is designed to filter incoming air from a compressor to provide respirator users Grade-D quality air while monitoring for CO. Details: 123 CFM flow capacity, provides Grade-D breathing air to 4 workers, 3 stage filters removes up to 99.99% of airborne contaminants down at 0.01 micron, CO monitor and alarm, 8 couplings. Specify 1/4€ Hansen style or Schrader style respirator fittings when ordering. Other fittings available for an additional charge.

Features

• 100 CFM Breather Box®
• 123 CFM flow capacity
• 8 couplings
• In-Line Carbon Monoxide (CO) monitor
• 2-year warranty on sensor and entire CO monitor
• Three standard power options: dual 9VDC battery, 8-16VDC, and/or 115VAC, 60 Hz
• Filter change indicator on all 3 filters
• Safety visual flowmeter to verify air flow to monitor, adjustable flow rate: 50-100 cc
• Safety relief valve set at 125 psi for outlet pressure
• External mounted CO warning LED lights and audible alarm, 95 dBA
• Solid aluminum block manifold with manual drain
• All respirator couplings provided with safety lock feature
• 0-160 psi pressure gauge
• Maximum Inlet Pressure - 150 psi

Specifications

• Canadian Z180.1
• BS-EN 12021:1999
• OSHA 1910.134
