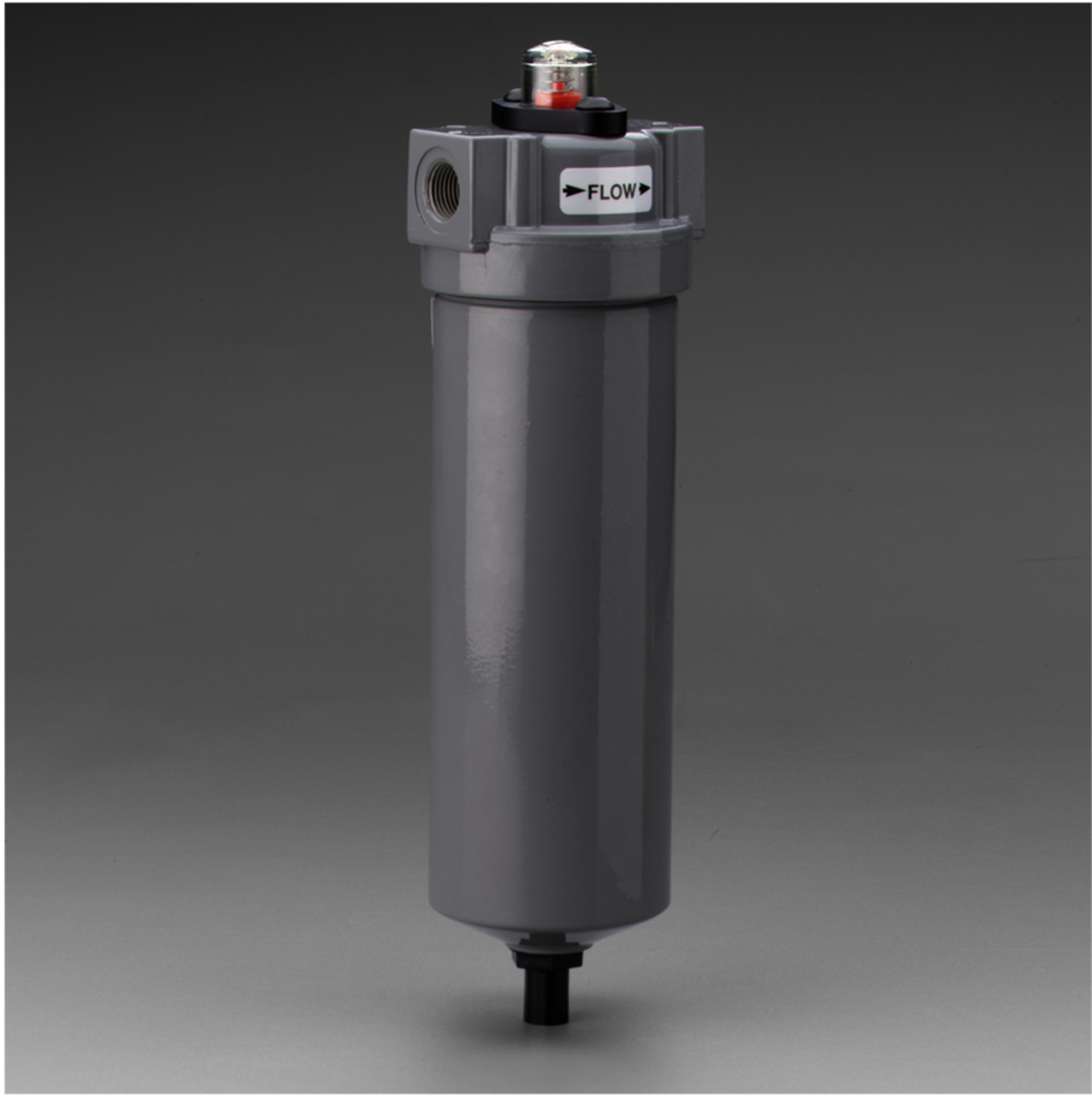

3M 50 CFM Coalescing Filter For Use With W2806 Positive Pressure Respirator Panel

Item Details

• 3M� Coalescing Filter supports a maximum airflow of 50 CFM at 150 psig and has an high efficiency of 99.97% when used with W-3013-4 filter element. Coalescing filter can be used in the applications where the concentration of liquid aerosols in compressed air is more. It can be used with W-2806 regulator panel and has temperature range of 32 to 130 deg F. It filters the aerosols, combines into larger droplets that are then collected at the bottom of the bowl. It includes an automatic float drain at the bottom of the filter that helps to remove the droplets from the housing.

Features

• The temperature range is from 32 to 130°F (0 to 54°C)
• Filter efficiency is 99.97% with the 3M™ High Efficiency Filter Element W-3013-4

Applications

• Assembly
• Mechanical
• Painting
• Cleaning
• Metal repair
• Blasting
