Allegro Industries WallAir Filtration Panel

Item Details

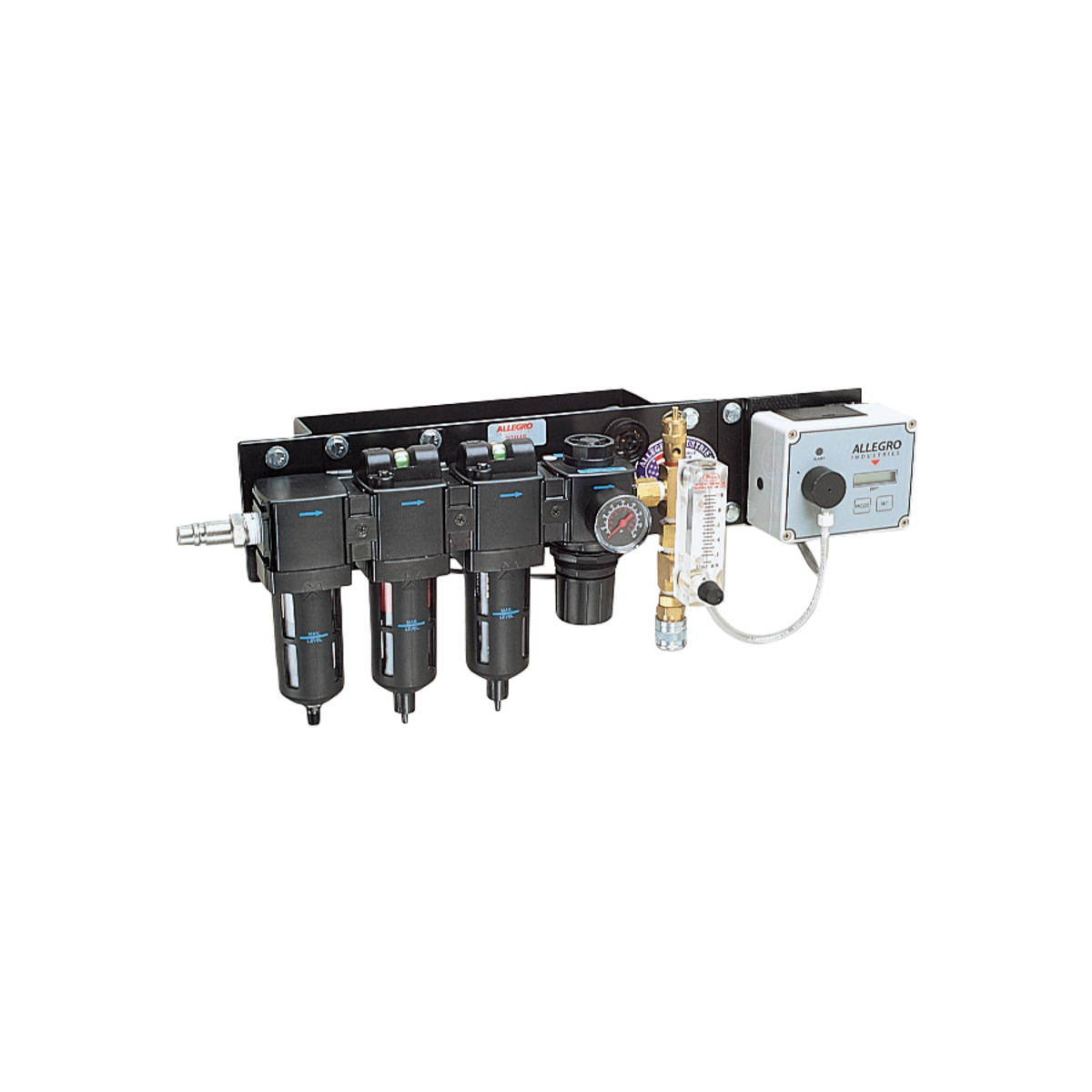

• Allegro� Industries Wall-Air� 2 Worker Filtration Panel can purify compressed air by removing water, oil as well as particulate contaminant and provides 30 CFM of air from 150 psig. Air panel includes a pressure gauge as well as adjustment knob with locking ring and is ideal for airline respirator. It can be used for pneumatic tools/equipment to clean breathable air. It has a carbon monoxide monitor that can be operated in AC or DC mode and activates an audible alarm when the concentration of CO exceeds 10 ppm. It meets NIOSH requirement.

Features

• FILTER SYSTEM: 1st stage: Filter 5 micron particles and automatic drain
• 2nd Stage: Coalescing filter cloth and drain 0010 microns manual
• 3rd Stage: Activated carbon filter of 0.003 microns and manual drain
• Regulator: High pressure adjustable knob range 0-160 PSI gauge and external valve pressure relief
• Manometer: Acrylic translucent, Teflon float, with adjustable valve.
• Graduations: 0.0 - 1.0 LPM
• CARBON MONOXIDE MONITOR : Power Source: 115V AC Adapter 9V DC
• Audible Alarm: 90 dB (Piezo)
• Visual: External LED Light
• Censor: Electrochemical, replaceable
