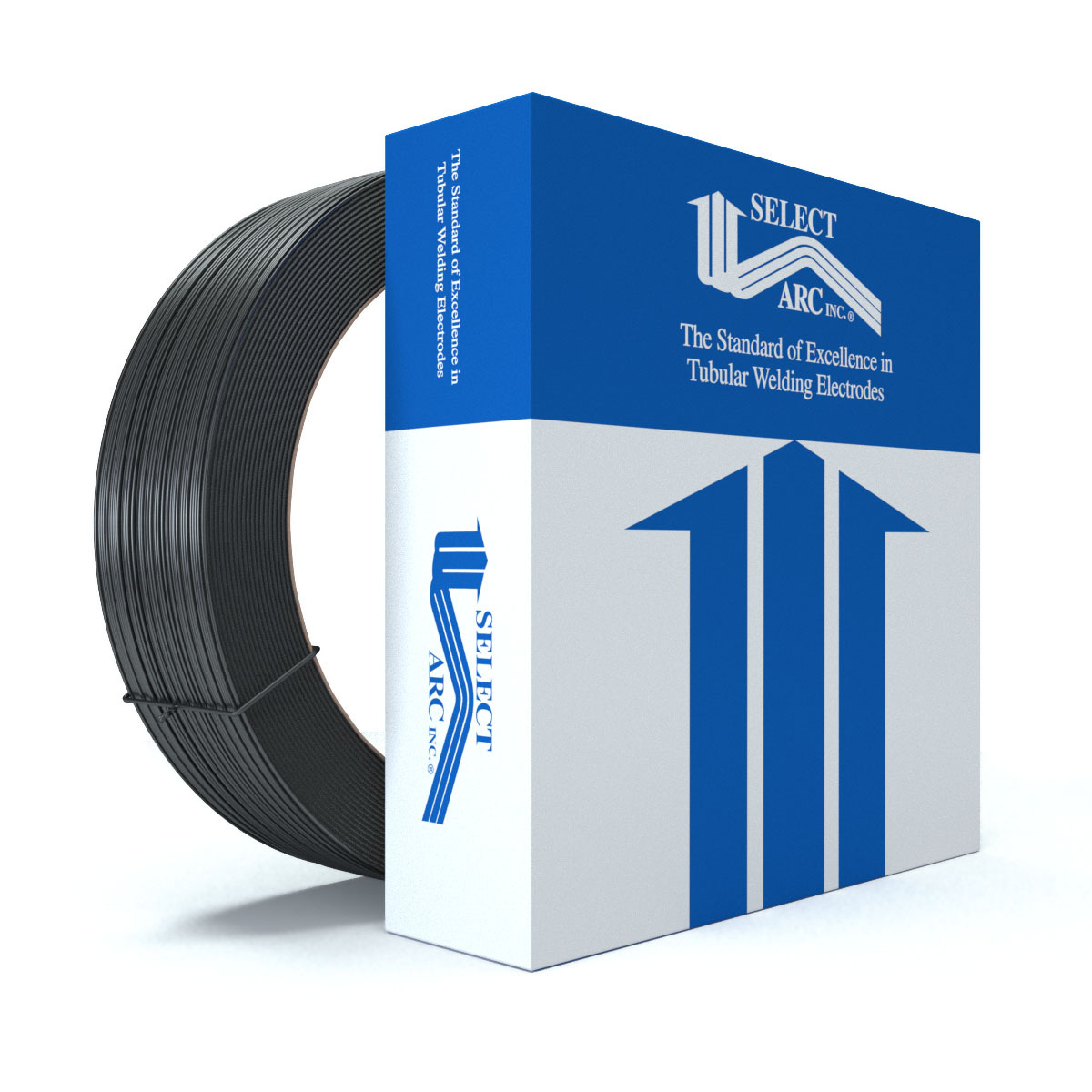

.052" E70T-1C Select 70TR Gas Shielded Flux Core Carbon Steel Tubular Welding Wire 60 lb Coil

Part Number: 1321560SKU: S041321560

$313.11

Unit Of Measure:

Adding this item to your cart will qualify your order for free shipping.

Item Details

Select 70TR is intended for the single and multiple pass welding of carbon and certain low alloy steels in the flat and horizontal fillet positions. This E70T-1 electrode has a unique slag system which allows multiple weld beads to be stacked in a horizontal fillet with a minimum of "roll" or convexity.

Features

CWB CSA W48-18 E490T1-C1A3-CS1-H8 (E492T-9-H8) 100%CO2
CWB CSA W48-18 E490T1-M21A3-CS1-H8 (E492T-9M-H8) 75%Ar/25%CO2
Superior bead geometry delivers flat profile and minimizes ""double beading"".
Extremely high welder appeal.
Low spatter and easily removed slag.
High deoxidation level facilitates welding over mill scale and rust.

Applications

The bead geometry of Select 70TR is much flatter, with minimal roll, or better tie-in, at the toe of the fillet.
Also, it is much easier to "stack" weld beads with Select 70TR when building up large horizontal fillets.
The welding of structural carbon steels, where high deposition rates and superior penetration characteristics are preferred, is well suited for Select 70TR.
It is an ideal choice for welding steels such as A36, A285, A515 and A516.

Specifications

"
AWS Classification» E70T-1C
Diameter» .052""
Weight» 60 lb
Trade Name» Select 70TR
Package» Coil
Core Info» Flux Core
Shielding Info» Gas Shielded"

Caution

Protect yourself and others read the safety data sheet prior to using this product.

WARNING

WARNING: This product can expose you to chemicals including Thorium dioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
