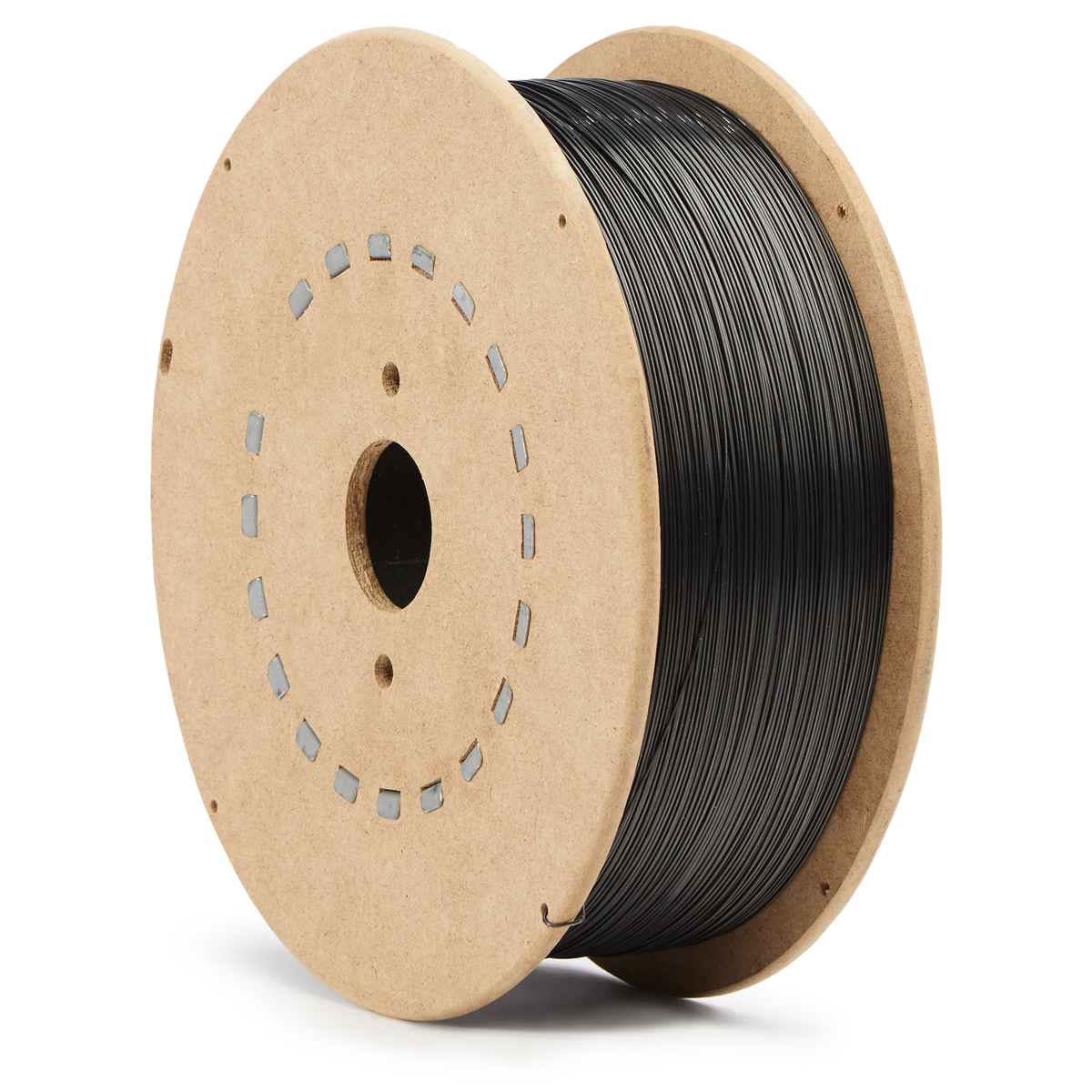

.045" E71T-1M NS ARC® FC71T-12M Tru-Core® Gas Shielded Flux Core Carbon Steel Tubular Welding Wire 33 lb Spool

Part Number: 1020184SKU: NAT1020184

$187.46

Unit Of Measure:

Add $250.00 worth of items to your cart to qualify for free shipping.

Item Details

Tru-Core® FC 71T-12M is a flux cored, gas shielded, all-position electrode, designed specifically for use with gas mixtures from 75% to 80% Argon/balance CO2. Tru-Core® FC 71T-12M is intended for single and multiple pass applications, for both in-position and out-of-position welding. Up to 80% Argon can be used with no degradation in welding performance or mechanical properties. The arc transfer is small-droplet in nature, with no appreciable spatter. The slag is fluid enough to provide good flow and wetting but freezes quickly, promoting flat, uniform bead shapes in all positions. Microalloying of the weld metal enhances CVN impact values at lower temperatures.

Features

NS ARC™ FC71T-12M Tru-Core® 0.045 flux-cored MIG welding wire 33LB Spool
Made in USA E71T-1M, E71T-9M, E71T-12M H8

Applications

Tru-Core® FC 71T-12M can be used for welding most carbon steels and certain low alloy steels.
It is ideal for welding thicknesses varying from 10 gauge sheet metal to heavy plate sections, where “all position” welding capability, stable arc characteristics and excellent mechanical properties are needed.
Some examples are:
Structural Steel
Shipbuilding
Railcar Construction
General Fabrication

includes

PRODUCT FEATURES: Excellent bead appearance in all positions
Designed for Argon/carbon dioxide blends
Easy slag removal
Smooth, spray-like arc transfer
Excellent feedability
Excellent mechanical properties
Fast-freezing slag promotes excellent out-of-position results
MANUFACTURING ADVANTAGES: Patented forming, feeding and drawing equipment
Consistent strip-to-core ratio
Precise thermal treatment that controls the type, amount and uniformity of surface oxides on the wire
Consistent diffusible hydrogen levels

Specifications

"
AWS Classification» E71T-1M
Diameter» .045""
Weight» 33 lb
Trade Name» NS ARC® FC71T-12M Tru-Core®
Package» Spool
Core Info» Flux Core
Shielding Info» Gas Shielded"
