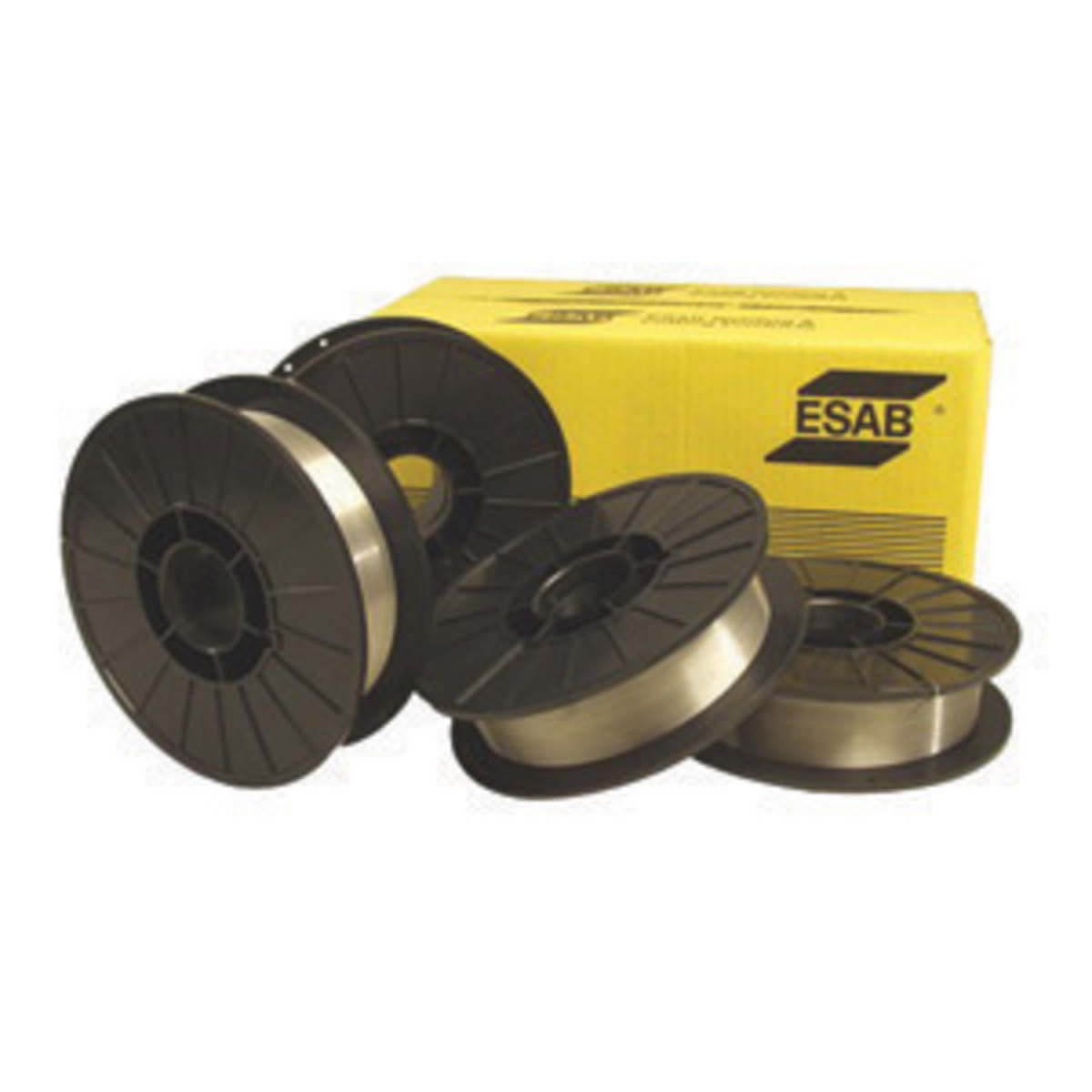

.045" E71T-9M Dual Shield® II 70 Ultra® Gas Shielded Carbon Steel Tubular Welding Wire 15 lb Plastic Spool

Part Number: 245014709SKU: ESA245014709

$135.29

Unit Of Measure:

Add $250.00 worth of items to your cart to qualify for free shipping.

Item Details

ESAB® Dual Shield® II 70 Ultra® Gas Shielded Flux Core Carbon Steel Tubular Welding Wire of .045" Dia efficiently produces smoother arc characteristics and lower welding fumes. Wire features a very wide operating window out of position deposition rates and welds that are virtually spatter free. An all-position flux cored wire that displays exceptional impact properties in both the as welded and stress relieved conditions when used with 75% Ar/25% CO2. It was developed to join low and medium carbon steel. Commercial applications include construction shipbuilding railcar industries and heavy equipment industries. Weld metal analysis is similar to an E7018 low hydrogen electrode. The Military classification allows this wire to be used for attaching steels of less than 81 ksi yield to HY-80 and HY-100. The improved properties of this wire qualify it to the Navy's "HY" classification. Wire is associated with E71T-1M E71T-9M E71T-12M class of wire and comes in a plastic spool of 45 lb.

Features

The"" Ultra"" series produces smoother arc characteristics and lower welding fumesDual Shield® II 70 Ultra is an all position flux cored wire that displays exceptional impact properties in both the as welded and stress relieved conditions when used with 75% Ar/25% CO2
Outstanding all position performance and a fume emission rate approaching that of solid wires
The improved properties qualify this wire to the Navy's ""HY"" classification
Weld metal analysis is similar to an E7018 low hydrogen electrode

Applications

Bridge Construction
Civil Construction
General Fabrications
Mobile Equipment
Railcars
Ship/Barge

Specifications

"
AWS Classification» E71T-9M
Diameter» .045""
Weight» 15 lb
Trade Name» Dual Shield® II 70 Ultra®
Package» Plastic Spool
Shielding Info» Gas Shielded"
