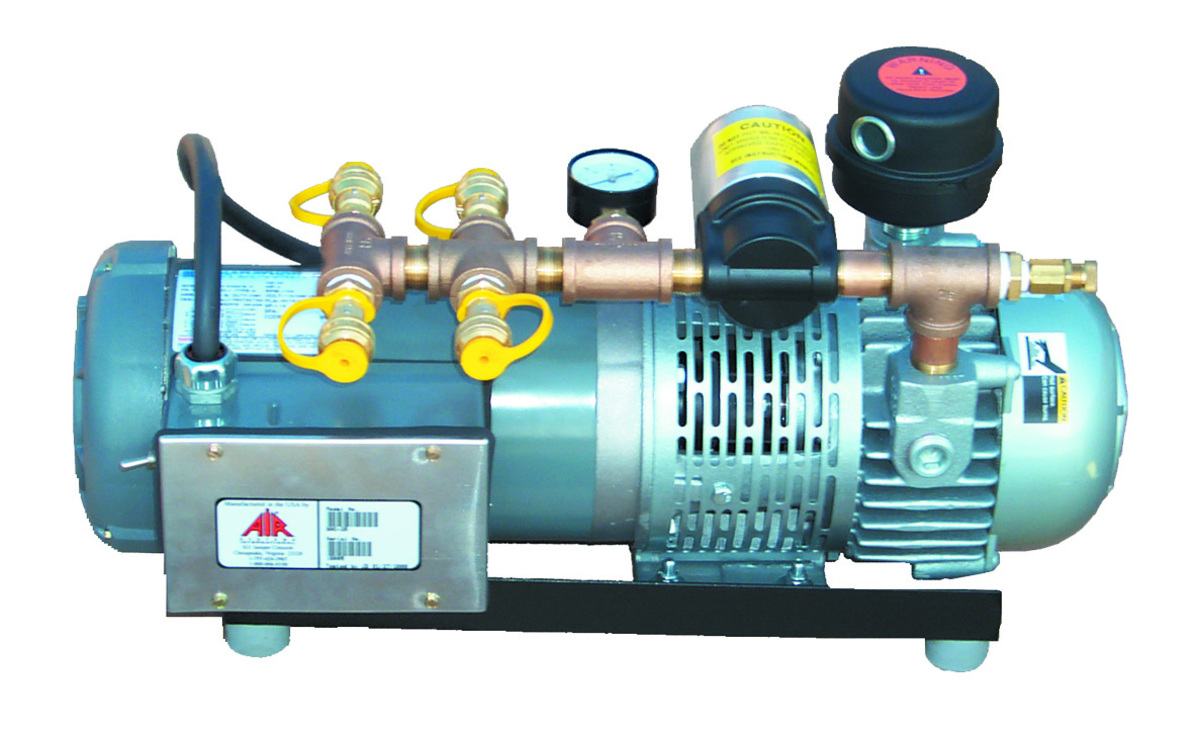

Air Systems International 20 CFMLow Pressure Breathing Air Compressor

Item Details

• Air Systems International 4-Worker Low Pressure Ambient Air Pump operates 2 hood style respirator or 4 tight fitting constant flow masks. Respirator requirements CANNOT exceed maximum pressure of 20 psi at 4 psi. Maximum 15 psi at 16 cfm output, 20 cfm output at 4 psi. Electric Motor: 2 HP, TEFC, 115/208-230VAC, 20.0/10.0 amps, 60 Hz. Specify 1/4€ Hansen style or Schrader style respirator fittings when ordering. Other fittings available for an additional charge.

Features

• Operates 2 hood style respirator or 3 tight fitting constant flow masks
• Respirator requirements CANNOT exceed maximum pressure of 15 psi
• Maximum pressure 15 psi at 16 cfm output, 20 cfm output at 4 psi
• Electric motor: 2 HP, TEFC, 115/208-230VAC, 20.0/10.0 amps, 60 Hz, 1 phase, thermally protected, UL/CSA approved
• 0.5-0.7 micron inlet and compressor filters
• Prewired with on/off switch and plug (115VAC plug only)
• Weight: 103 lbs

Specifications

• OSHA 1910.134

Caution

• Do not use kerosene or any oil based solvents for cleaning these compressors
• Do not lubricate oil less breathing air compressors. Do not run these air compressors in the wrong rotation
• Check the rotation arrow on the compressor if you are rewiring the electric motor
• Disconnect the power source before servicing the electric motor
• Do not run this compressor without connecting at least one hose and respirator to the manifold quick disconnect assembly
• Compressors must be used with constant flow, low pressure respirators only
• Pressure demand respirators will not operate on this compressor
• The breathing air compressor units can not be operated in an area that is immediately dangerous to life or health (IDLH)
• Up to 150 ft. (46 m) of extension tubing can be used to remote the intake snorkel
• Do not touch these surfaces until the unit has been shut off and allowed to cool
