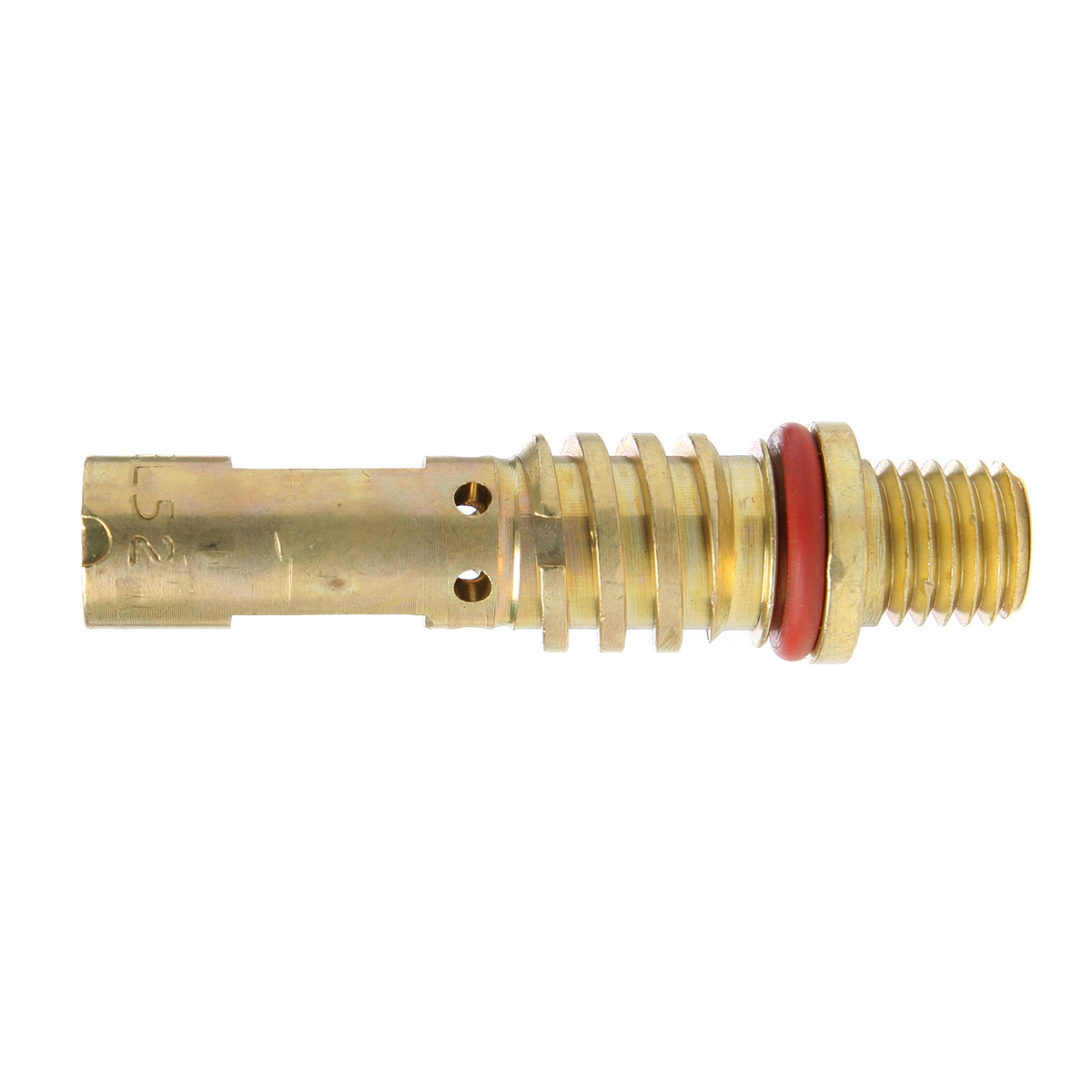

Tweco® Eliminator® Series Gas Diffuser
Part Number: 15601109SKU: TWE1560-1109
$91.40
Item Details
Tweco® Eliminator® Series Brass Gas Diffuser is perfect for use with course thread nozzle assemblies with 350 A Tweco® Eliminator® MIG gun series as well as eliminator front-end consumables. Gas diffuser has magnificent electrical properties making it ideal for use in light to medium duty standard welding application up to 350 A. 2.378" Gas diffuser with M11 x 1.5 - 6g thread size has six 0.094" gas holes. Gas diffuser offers the OD course threads so that the nozzle assembly can come with the conductor tube. It features part number rolled stamped on the external surface and overall length with replacement O-ring number for easy identification. Gas diffuser is made from 360-brass alloy bar stock offers consistent dimensional stability. It has a proper threaded size conductor tube to be used with MIG guns. It features a silicon O-ring to provide secure sealing against the nozzle assembly. Gas diffuser is sold as 5 per pack.Features
- Easy identification - part no rolled stamped on the outside surface
- Designed to be used with course thread nozzle assemblies
- Gas diffuser provides the OD course threads so that the nozzle assembly can attach to the conductor tube
- Gas diffuser has a silicon o-ring to seal against the nozzle assembly
- Machined from 360 brass alloy bar stock to ensure consistent dimensional stability
- Recessed Tips are generally used for higher heat applications where longer electrical stick-out is required, or in cases where the nozzle may touch the work piece (tack, spot, and stitch)
- Flush tips are generally used where a shorter electrical stick-out is used sometimes resulting in shorter/tighter arc lengths, this brings the tip closer to the work piece
- Protruding Tips are generally used when welding open root pipe or any joint that requires the welder to get into a tight weld joint
- However the down side to this is the chance of arcing the tip to the work piece, which could damage front end parts resulting in downtime needed to replace
- Replacement O-ring Part No EL52-1 (Stock No 1560-1108)
- Standard Duty
- M11 x 1.5-6G male threaded
Applications
- Used in light to medium duty welding application up to 350 Amp
