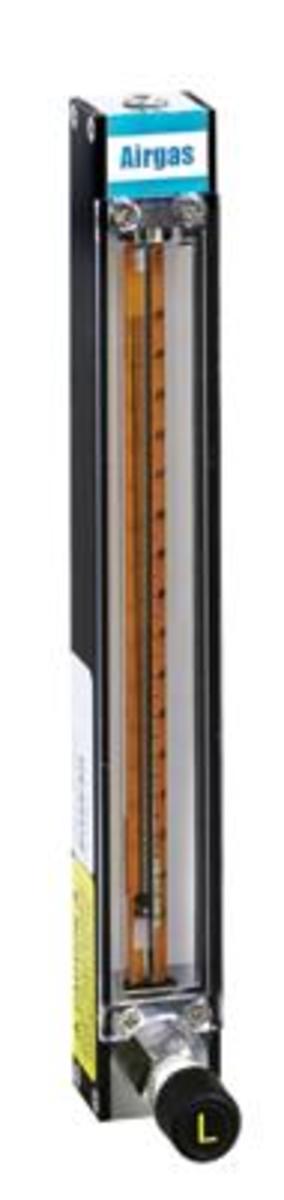

Airgas® 18.5/35.2 scfh Brass High Resolution Valve Flowmeter

Part Number: PMR1-011006SKU: Y21B1504HA-AG
$435.73

Qty: Order In Bulk
Adding this item to your cart will qualify your order for free shipping.

Item Details

Our high-resolution flowmeters permit measurement of a wide range of gases and fluids under a variety of pressure and temperature conditions.

Features

  • The brass and stainless steel units feature a 1.5 focal power magnifying front cover for more accurate tube reading. High-resolution models feature 16-turn valve for precise control. Choose our standard-valve flowmeter when precise control is not required (see our standard resolution models).These flowmeters contain dual floats - each constructed of a different material - providing a 20:1 readout range, versus the industry standard of 10:1.Each flowmeter is equipped with two panel-mount retaining nuts to simplify industrial panel mounting. An optional tripod base for easy bench setup in laboratory applications is available. Pipe-to-tubing or pipe-to-hose Adapters are also available.150 mm Details: With its superior resolution, the 150 mm flow tubes are recommended for laboratory applications. Accuracy is +/- 2% full scale with +/- .25% repeatability. The enlongated scale permits critical flows to be gauged more accurately and read more easily.

Specifications

  • "
  • Maximum Pressure - 200 psigInlet/Outlet - 1/8"" FNPTFloat Material - Glass/Stainless SteelFrame Material - BrassMax Flow Rate* (Air) - 8555/16493 ccm - 18.12/34.94 scfh (*Minimum flow rate is approximately 10% of maximum figure.)"
