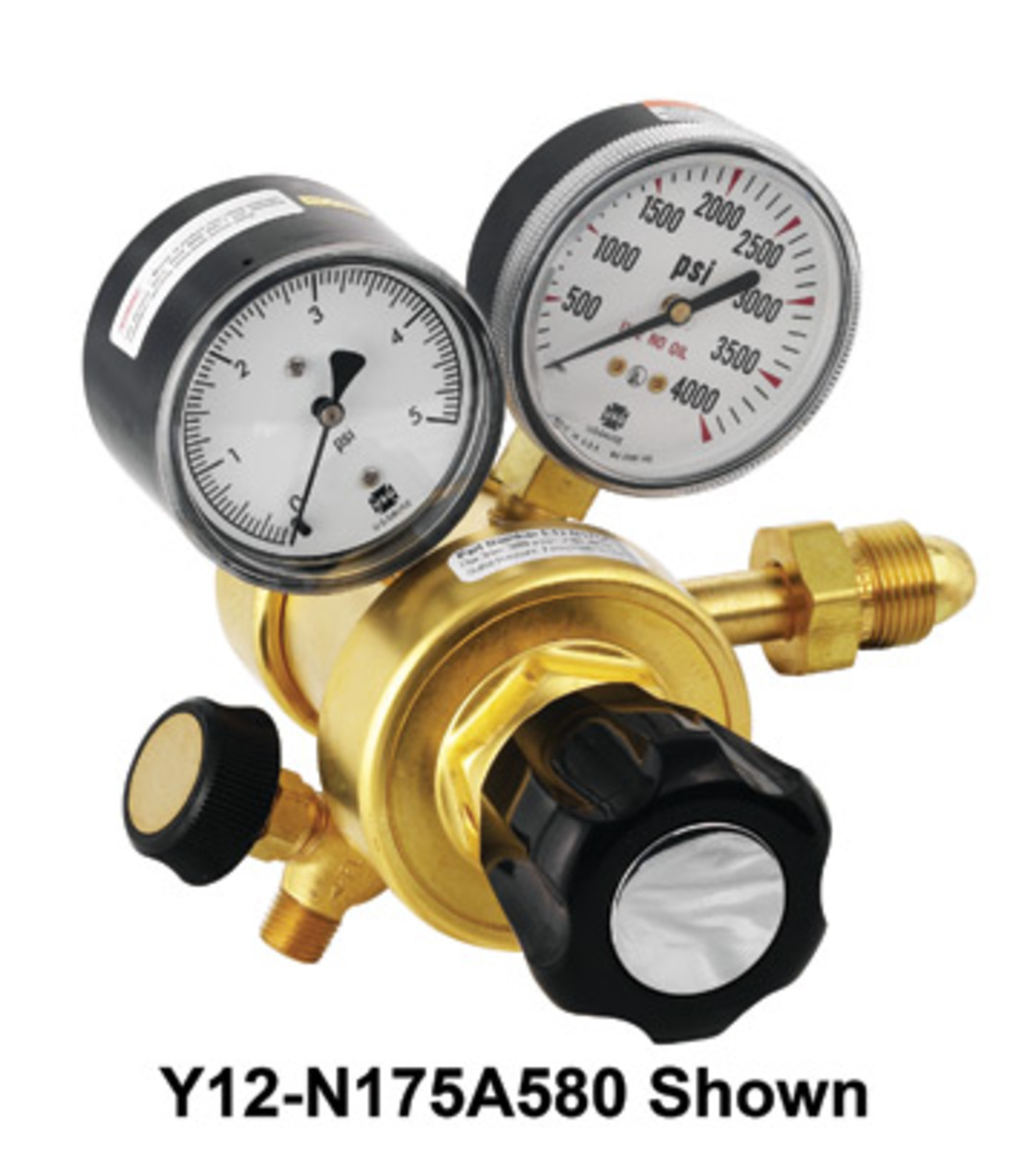

Airgas® Model N175B510 Brass Ultra Low Delivery Pressure Two Stage Regulator
Please Call for Lead Time - (262-820-1868)
Part Number: N175B510SKU: Y12N175B510-AG
Quantity Available: 0
$677.77
Item Details
This two-stage regulator is recommended for use with non-corrosive gases in applications where an ultra-low delivery pressure is required. It maintains an accurate delivery pressure over the life of the cylinder. The two-stage design limits the variations in the outlet pressure to 0.06 psig for every 100 psig of inlet pressure decay. Made of durable, long-lasting forged brass and then chrome plated, this regulator is perfect for non-corrosive, ultra-low delivery pressure gases. A needle valve is included on the outlet.Features
- Large Elastimeric Diaphragms deliver precise pressure control from full cylinder to almost empty.
- Sintered Metal Filter protects internal parts and extends service life.
- Unique Delivery Gauge provides 0.1 psi graduations on the 0 - 2 psi unit and 0.5 psi on the 0 - 6 psi unit.
- Inter-Stage Relief Valve protects second stage from over-pressurization.
Specifications
- Model» N175B510
- Usage» Ultra Low Delivery Pressure
- Material» Brass
- Regulator Type» Two Stage Regulator
- Outlet Connection» 1/4" NPT male
- Max Outlet Pressure» 6 psig
- Gauge Diameter» 2 1/2
