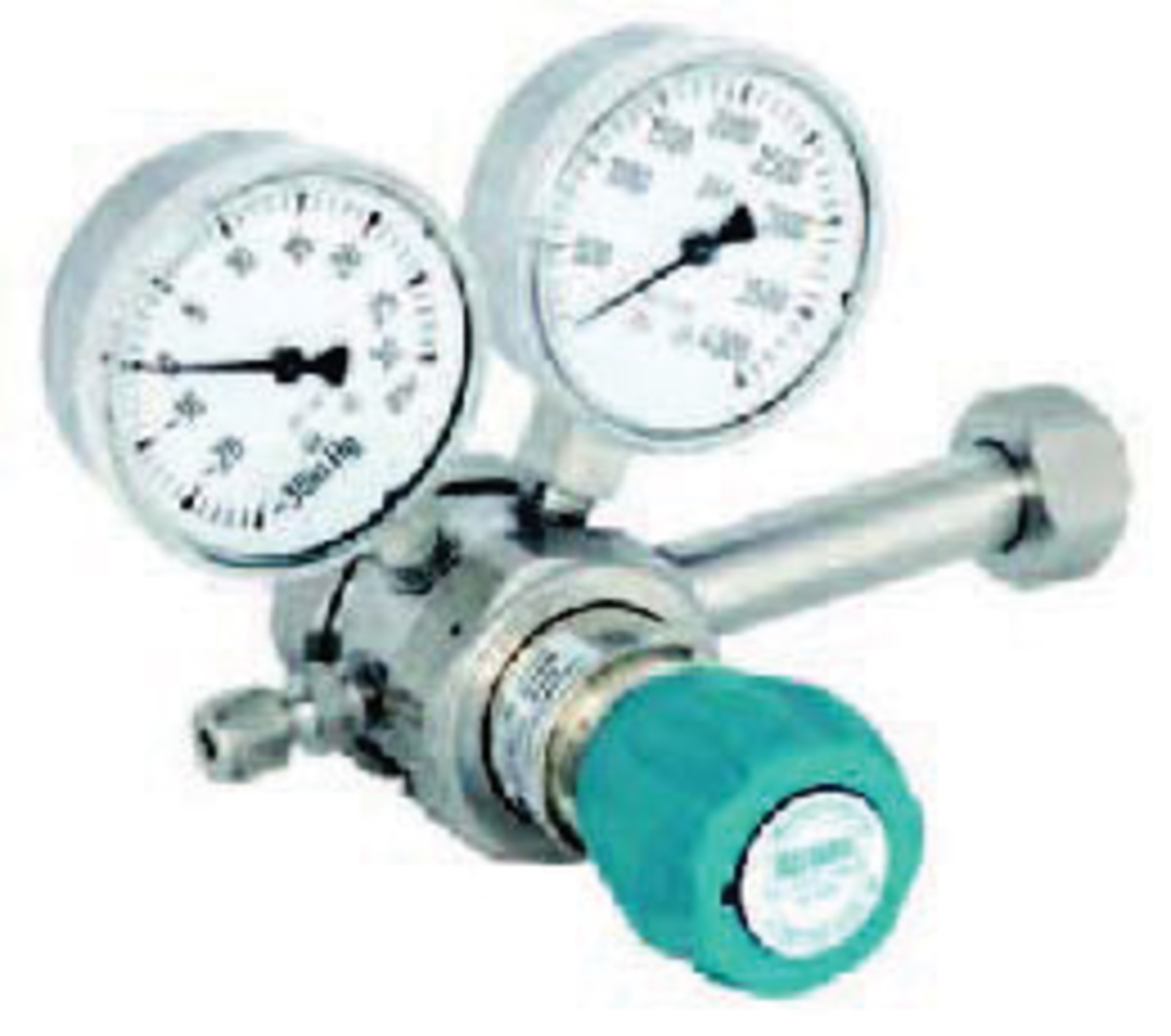

Airgas® Model HG445A660 Stainless Steel Mercury Standards Two Stage Pressure Regulator
Part Number: HG445A660SKU: Y12HG445A660-AG
$1,672.70
Item Details
This two-stage stainless steel, high-purity regulator has been designed to provide precise pressure regulation for the Airgas® EPA Protocol Mercury Standards. The two-stage body, diaphragms, internal carriers, internal compression members, 0.06 Cv poppets, conical compression springs, 1?4" compression fitting and CGA-660 nipple are all passivated using a proprietary coating. This unique coating mitigates the chances of any level of mercury attaching to the internal wetted components of this specialty regulator. The result is a two-stage pressure regulator that will not hold back or alter any level (PPM or PPB) of the mercury standard. The internal threadless seat design of the two-stage stainless steel regulator is the same as used in our high-purity Y12-C445 series. The convoluted Hastelloy® C-22 diaphragms provide excellent regulating characteristics and allow for internal vacuum purging. An outlet 1?4" compression fitting is provided to maintain optimum system purity.Features
- Unique Proprietary Passivation Process: Special coating prevents mercury from “sticking” to the internal wetted components of the stainless steel regulator.
- Convoluted Hastelloy® C-22 Diaphragms: Providing superior leak integrity without contamination from a non-metallic liner or seal.
- Threadless Seat Design: Providing longer regulator life.
Specifications
- Maximum Inlet Pressure: 4,000 psig
- Outlet Pressure Range: 2 - 30 psig
- Capacity: 190 scfh @ Max Del. Pressure
- Delivery Gauge Range: 30" Hg-0-30
- Flow Capacity: Cv= 0.06
- Ambient Operating Temperature: -40° F to 150° F
- Designed Leak Rate: 2x10–8 ccs (helium)
- Weight: 4 lbs
- Ports: (5) 1/4" FNPT
- Decay Inlet Characteristic: 0.01/100 psi
