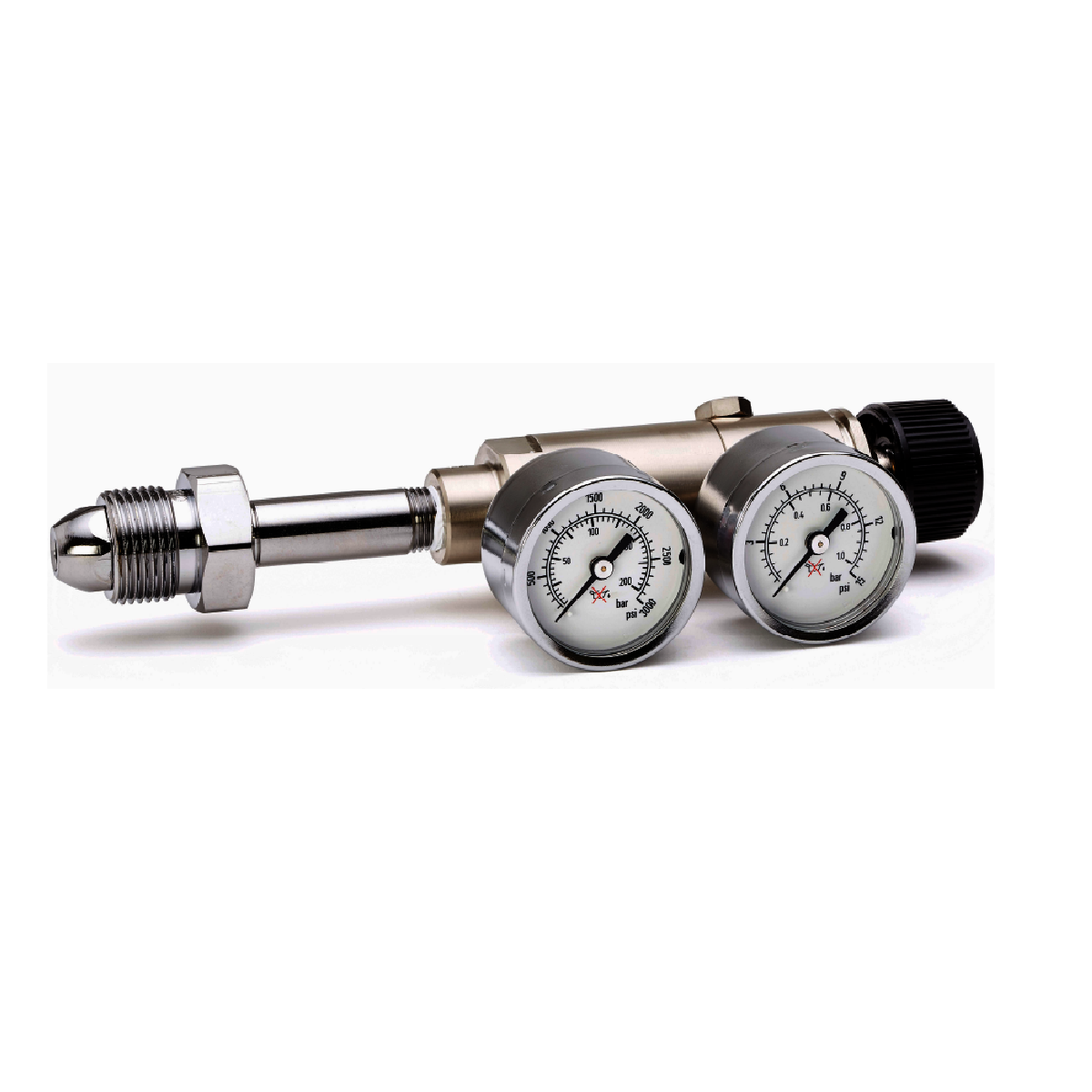

Airgas® Model 14 Nickel-Plated Brass High Purity Two Stage Regulator With CGA-320 Connection
Please Call for Lead Time - (262-820-1868)
Part Number: 114D320SKU: Y12114D320-AL
Quantity Available: 0
$661.61
Item Details
Model 14 Series regulators are recommended wherever precise, low-pressure delivery of high-purity gases is needed. Compact, two-stage design provides constant delivery pressure with no need for periodic readjustment. Nickel-plated brass construction protects gas purity and ensures long regulator life when used with noncorrosive gases.Features
- Two-stage design eliminates the need to readjust delivery pressure as inlet pressure decreases
- Stainless steel diaphragm on the second stage minimizes diffusion of air into regulator to eliminate off-gassing
- Sintered filter protects the internal parts and extends the life of the regulator
- Low internal dead volume minimizes purge time
- Economical, with many years of proven service life
Specifications
- Model» 14
- Usage» High Purity
- Material» Nickel-Plated Brass
- Regulator Type» Two Stage Regulator
- Inlet Connection» CGA-320
- Outlet Connection» 1/8" NPT Female
- Max Outlet Pressure» 100 psig
