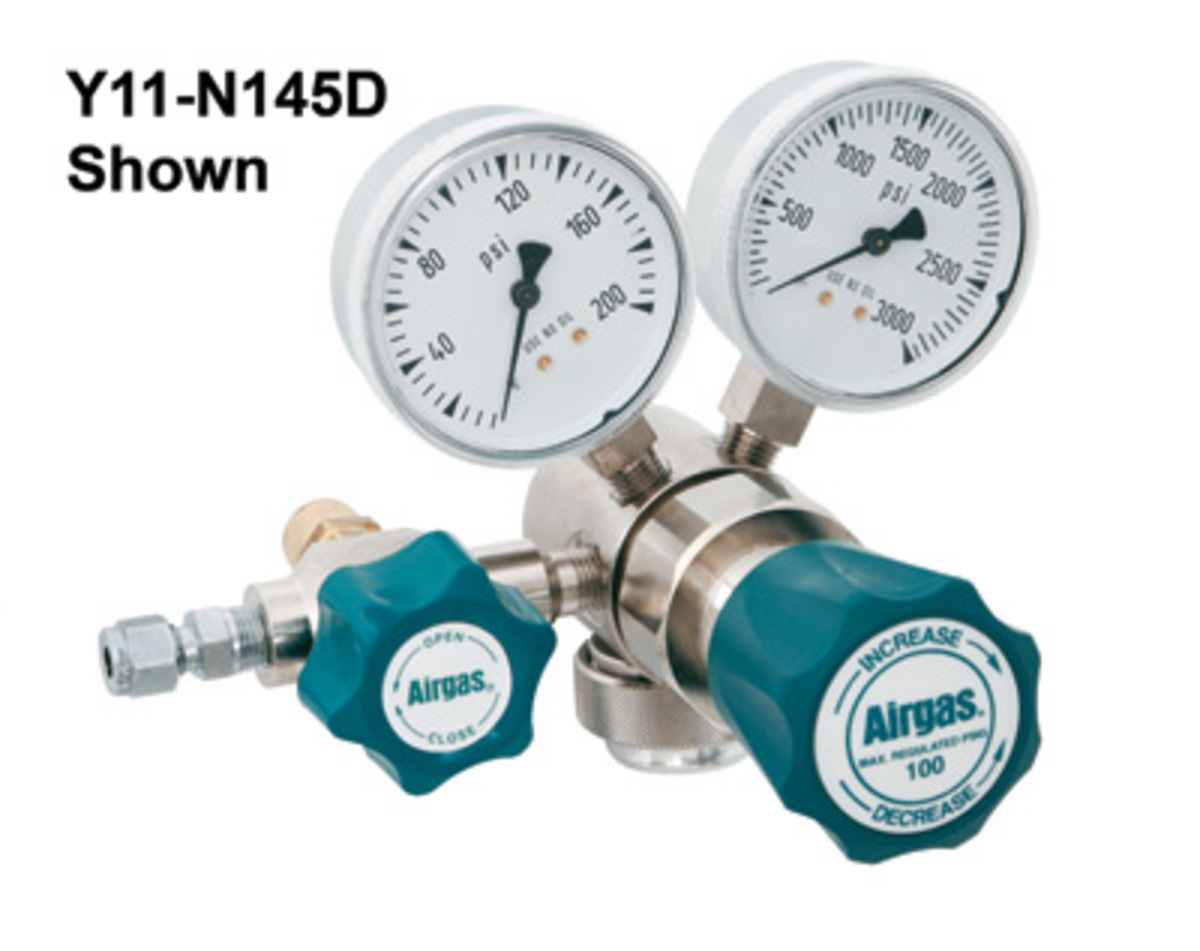

Airgas® Model N145DHF296 Brass Specialty High Purity High Flow Pressure Regulator With 1/2" FNPT Connection
Part Number: N145DHF296SKU: Y11N145DHF296-AG
$852.50
Item Details
This series of regulators is used for applications requiring high gas flow rates and a compact design. These regulators can handle flows up to 250 liters per minute of nitrogen with only a 5 psig pressure drop. In addition, these units will handle hydrogen flow up to 1,000 liters per minute without the resonance problems associated with other regulators in this same application.Features
- Stainless Steel Diaphragm: Provides precise pressure control and superior leak integrity.
- Cv Flow Coefficient = 1.0 to permit high flows with minimum pressure drop.
- Stabilizer Springs: Eliminate regulator resonance.
Specifications
- Maximum Inlet Pressure: 3,000 psig
- Outlet Pressure Range: 0 - 120 psig
- Capacity (scfh @ Max Del. Pressure): 7,200
- Inlet Gauge Range: 0 - 4,000 psig
- Delivery Gauge Range: 0 - 200 psig
- Flow Capacity: Cv= 1.0
- Ambient Operating Temperature: -40° F to +140° F
- Designed Leak Rate: 1 x10-8 ccs (helium)
- Weight: 5.8 lbs
- Gauge Port(s): 1/4" FNPT
