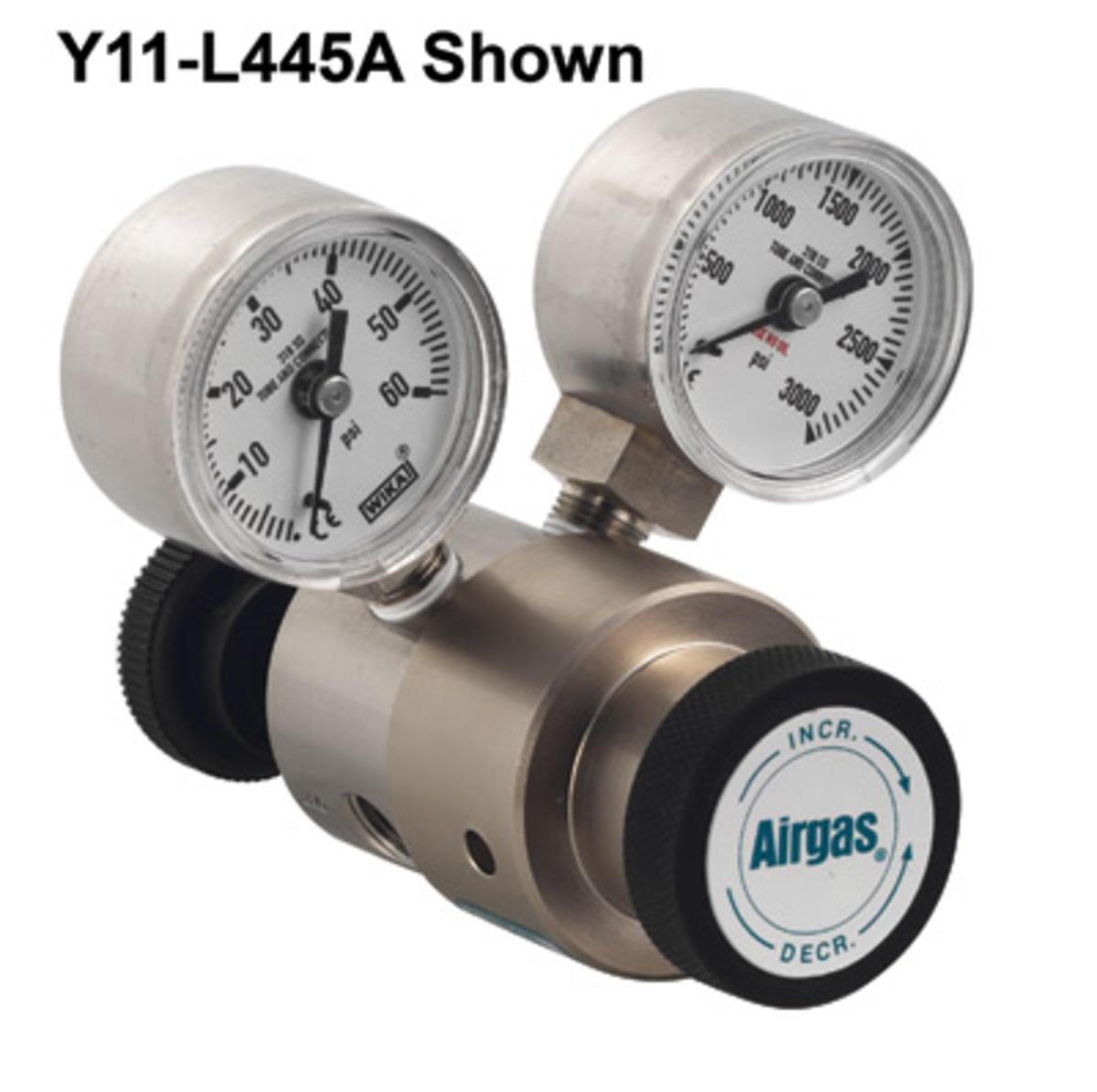

Airgas® Model L445AC10 Stainless Steel Specialty High Purity Single Stage Mini Regulator With 1/8" FNPT Connection And SS Diaphragm

Part Number: L445AC10SKU: Y11L445AC10-AG
$706.51

Qty: Order In Bulk
Adding this item to your cart will qualify your order for free shipping.

Item Details

These compact, single-stage general-purpose and analytical series regulators are ideally suited for lecture bottles and other small cylinders. They are equipped with a CGA-180 connection for easy attachment to Airgas® lecture bottles. Other CGA-connections (110 or 170 CGA’s) are available upon request. Rated to 3,000 psig, these regulators feature a built-in, non-lubricated needle valve that has been designed to regulate outlet flow. NOTE: Choose a brass model for nonanalytical/non-corrosive service, an aluminum model for mildly corrosive service, or a stainless steel model for corrosive service.

Features

  • Compact Design: Ideal for lecture bottles and small cylinders.
  • Sensitive Diaphragm: Provides accurate pressure settings.
  • 1 1/2"" or 2"" Gauges: Easy to read at a glance.
  • Large Adjusting Knob: Provides excellent sensitivity over a wide range of settings.
  • Needle Valve: Provides easy control of flow volume.

Specifications

  • Maximum Inlet Pressure: 3,000 psig
  • Outlet Pressure Range: 0 - 25 psig
  • Capacity (scfh @ Max Del. Pressure): 90
  • Inlet Gauge Range: 0 - 3,000 psig
  • Delivery Gauge Range: 0 - 30 psig
  • Flow Capacity: Cv= 0.08
  • Ambient Operating Temperature: -40° F to +165° F
  • Designed Leak Rate: Bubble-Tight (helium)
  • Weight: 1.5 lbs
  • Ports: (3) 1/8" FNPT
  • Decay Inlet Characteristic: 0.58/100 psi
