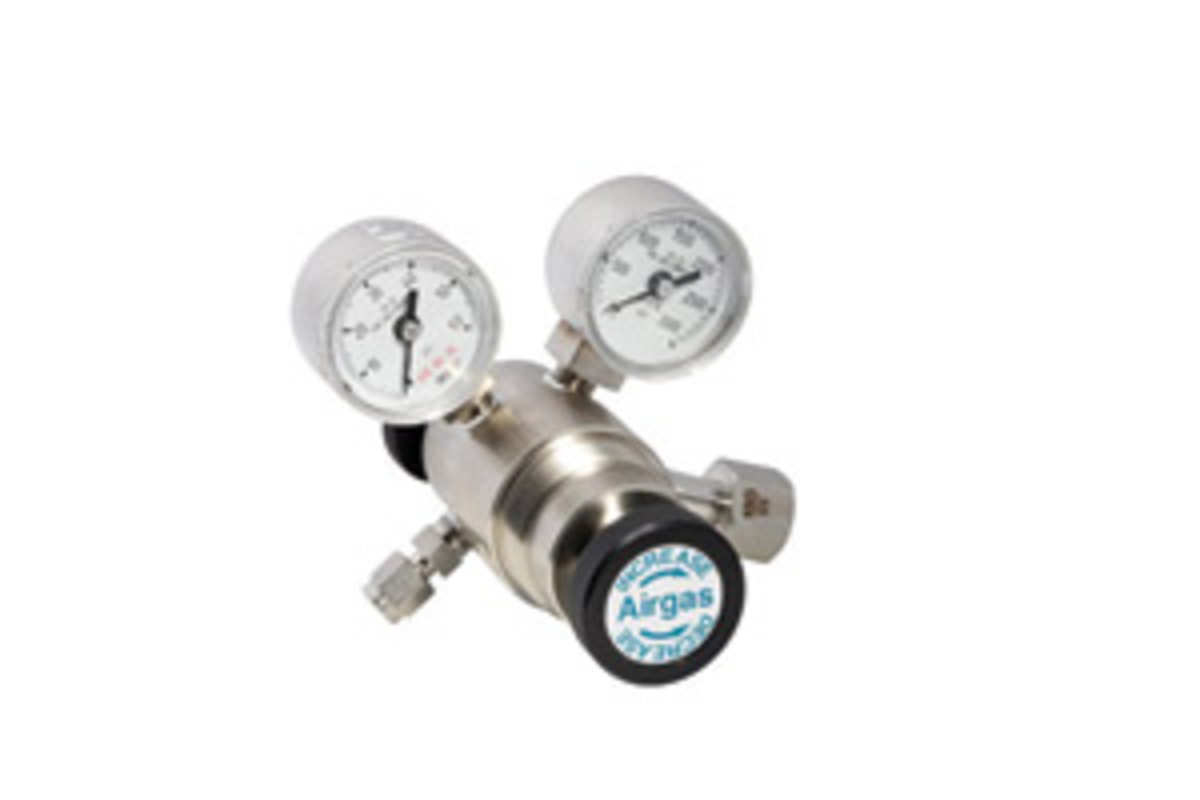

Airgas® Model L215ALB180 Brass Specialty High Purity Single Stage Mini Regulator With 1/8" FNPT Connection And Neoprene Diaphragm
Part Number: L215ALB180SKU: Y11L215ALB180-AG
$447.96
Item Details
These compact, single-stage general-purpose and analytical series regulators are ideally suited for lecture bottles and other small cylinders. They are equipped with a CGA-180 connection for easy attachment to Airgas® lecture bottles. Other CGA-connections (110 or 170 CGA’s) are available upon request. Rated to 3,000 psig, these regulators feature a built-in, non-lubricated needle valve that has been designed to regulate outlet flow. NOTE: Choose a brass model for nonanalytical/non-corrosive service, an aluminum model for mildly corrosive service, or a stainless steel model for corrosive service.Features
- Compact Design: Ideal for lecture bottles and small cylinders.
- Sensitive Diaphragm: Provides accurate pressure settings.
- 1 1/2"" or 2"" Gauges: Easy to read at a glance.
- Large Adjusting Knob: Provides excellent sensitivity over a wide range of settings.
- Needle Valve: Provides easy control of flow volume.
Specifications
- Maximum Inlet Pressure: 3,000 psig
- Outlet Pressure Range: 0 - 25 psig
- Capacity (scfh @ Max Del. Pressure): 300
- Inlet Gauge Range: 0 - 3,000 psig
- Delivery Gauge Range: 0 - 30 psig
- Flow Capacity: Cv= 0.08
- Ambient Operating Temperature: -40° F to +165° F
- Designed Leak Rate: Bubble-Tight (helium)
- Weight: 1.5 lbs
- Ports: (3) 1/8" FNPT
- Decay Inlet Characteristic: 0.58/100 psi
