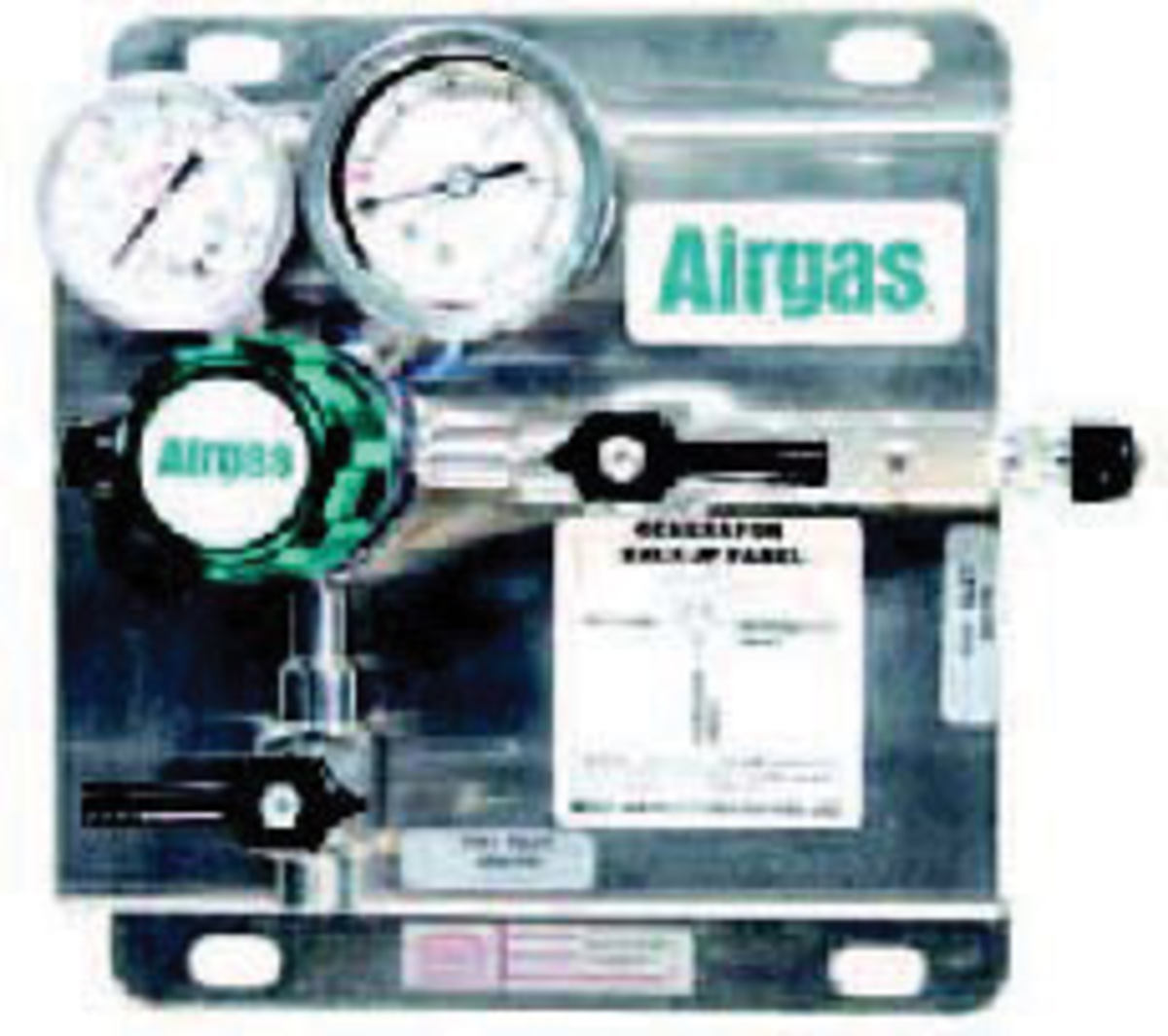

Airgas® 0-150 PSI 2 Cylinder Brass Generator Backup Panel CGA-350
Part Number: GBP120350SKU: Y11GBP120350-AG
$2,601.00
Item Details
The Airgas® 540 Series Generator Backup Panel System is designed to provide a reserve supply to a gas generator or other critical gas supply system. If there is loss of electrical power or the generator cannot provide sufficient gas to the system, the reserve supply will automatically activate and supply gas without interruption. When the generator is capable of supplying the system again the reserve automatically shuts down. Panels are available for Nitrogen, Air, Hydrogen, and other inert gases. The panels will automatically supply a continuous supply of high purity, non-corrosive gas. The user can select at which pressure between 0-150 psig that they desire the system to engage. The pigtails are flexible stainless steel for easy cylinder connectionFeatures
- the CGA's have integral check valves.**There are high purity quarter turn diaphragm shut off and check valves on both the generator and reserve supply side to prevent backflow and allow isolation and disconnection of either line for service.***Remote alarm models are available to notify users of low reserve pressure.
includes
- Available in Brass or Stainless Steel Models - Choice of high purity materials
- Metal-to-metal diaphragm seal - No possibility of gas contamination
- User-selectable activation pressure - Allows for nominal generator changes without use of rexerve
- Check valves on generator and reserve supply line and in CGA-nipples - Prevents contamination and back flow
- Quarter turn diaphragm valves on generator and reserve supply line - Allows for isolation and disconnection of either side for service.
