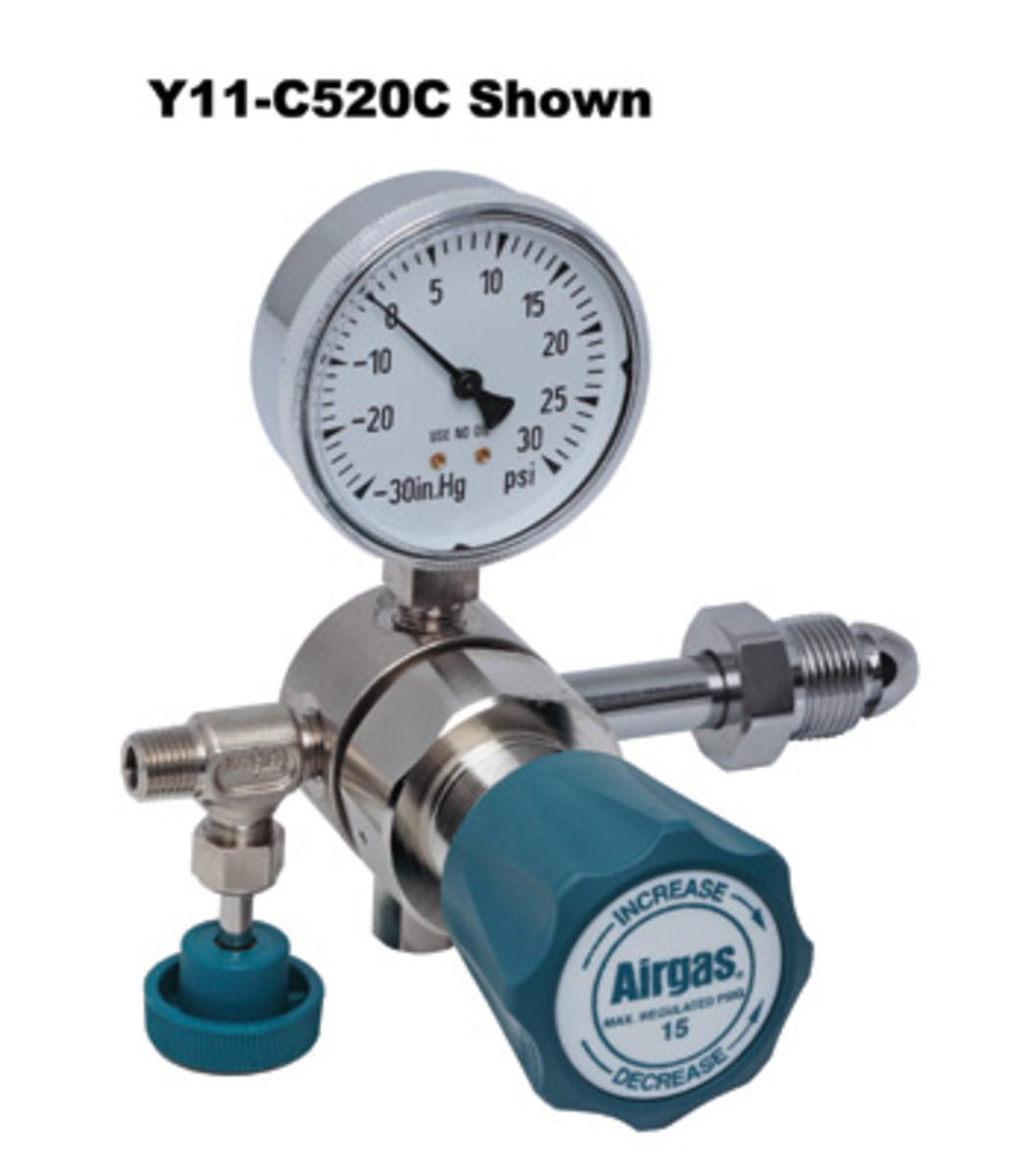

Airgas® Model C520C Aluminum Corrosive Service Single Stage Economy Model Regulator

Part Number: Y11-C520CSKU: Y11C520C-AG
$878.22

Qty: Order In Bulk
Adding this item to your cart will qualify your order for free shipping.

Item Details

These single-stage regulators are designed for mildly corrosive gases that attack brass or copper-bearing alloys. Each regulator features a large diaphragm which provides excellent performance and precise pressure control. These regulators are constructed of aluminum alloy and are equipped with stainless steel gauges, a sintered stainless steel inlet filter and a stainless steel instrument valve. Note: Due to the corrosive nature of the gases used with this regulator, a cross purge assembly is required to maintain the warranty and for safety.

Features

  • Filtered Seat: For added gas stream purity and extended service life.
  • Aluminum Alloy Construction: Improves flow capacity of liquefied gases with low vapor pressures.
  • 2 1/2" Stainless Steel Gauges: Permit accurate and easy reading.
  • Due to the corrosive nature of the gases used with this regulator, a cross purge assembly is required to maintain the warranty and for safety.

Specifications

  • "
  • Maximum Inlet Pressure: 400 psig
  • Outlet Pressure Range: 50 psig
  • Capacity (scfh @ Max Del. Pressure): 600
  • Type: Single Stage
  • Delivery Gauge: 0 - 100 psig
  • Safety Relief Valve: N/A
  • Flow Capacity: Cv= 0.12
  • Ambient Operating Temperature: -20° F to +165° F
  • Designed Leak Rate: Bubble-Tight (helium)
  • Weight: 3 lbs
  • Decay Inlet Characteristic: 0.35/100 psi
  • Seat: PCTFE
  • Body: Aluminum Alloy
  • Diaphragm: 316 Stainless Steel
  • Valve Stem: 316 Stainless Steel
  • Filter: Sintered Stainless Steel
  • Bonnet: Nickel-Plated Brass
  • Trim: Aluminum/SS"

WARNING

  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
