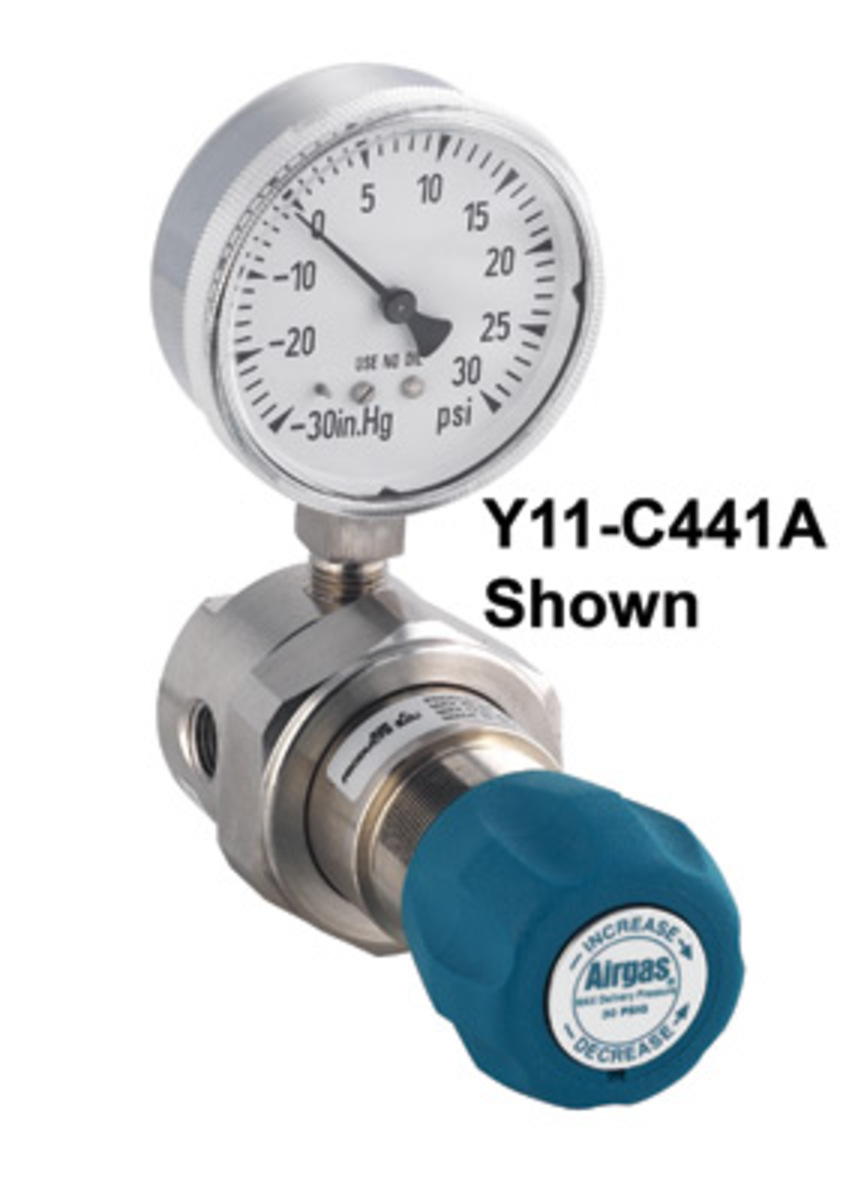

Airgas® Model C441A510 Stainless Steel High Purity Single Stage Line Regulator With 1/4" FNPT Connection And Threadless Seat

Part Number: C441A510SKU: Y11C441A510-AG
$733.17

Qty: Order In Bulk
Adding this item to your cart will qualify your order for free shipping.

Item Details

This series of 316 stainless steel high-purity, single-stage line regulators is recommended for applications where diffusion resistance is required. These regulators are recommended for use on low-pressure pipelines serving gas chromatographs, mass spectrometers, research sampling systems, and semiconductor processing. The specially-designed, convoluted Hastelloy® C-22 diaphragm provides accurate, stable delivery pressure and is capable of withstanding internal vacuum purging. These units are easily mounted to panels using the optional panel-mount nuts with the threaded bonnet. Two 10 x 32 UNF-threaded holes in the body allow for bracket or external panel mounting. The optional bonnet vent adapter allows venting of hazardous gases in the event of diaphragm failure.

Features

  • Convoluted Hastelloy® C-22 Diaphragms provide superior leak integrity without contamination from a non-metallic liner or seal.
  • Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of diaphragm failure.
  • Standard Threaded Bonnet (with optional collar-mount nuts) for easy panel mounting.
  • High-Flow Capacity permits excellent pressure control for multi-instrument applications.
  • Threadless Seat Design provides longer regulator life.

Specifications

  • Maximum Rated Inlet Pressure: 1,250 psig
  • Outlet Pressure Ranges: 0-30 psig
  • Flow Capacity: Cv=0.15
  • Ambient Operating Temperature: -40° F to +150° F
  • Designed Leak Rate: Bubble tight
  • Weight: 2 lbs
  • Ports: 1/4" FNPT
  • Delivery Gauge: 0 - 30" Hg-0-30
  • Capacity: 600 scfh @ Max Delivery Pressure

WARNING

  • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
