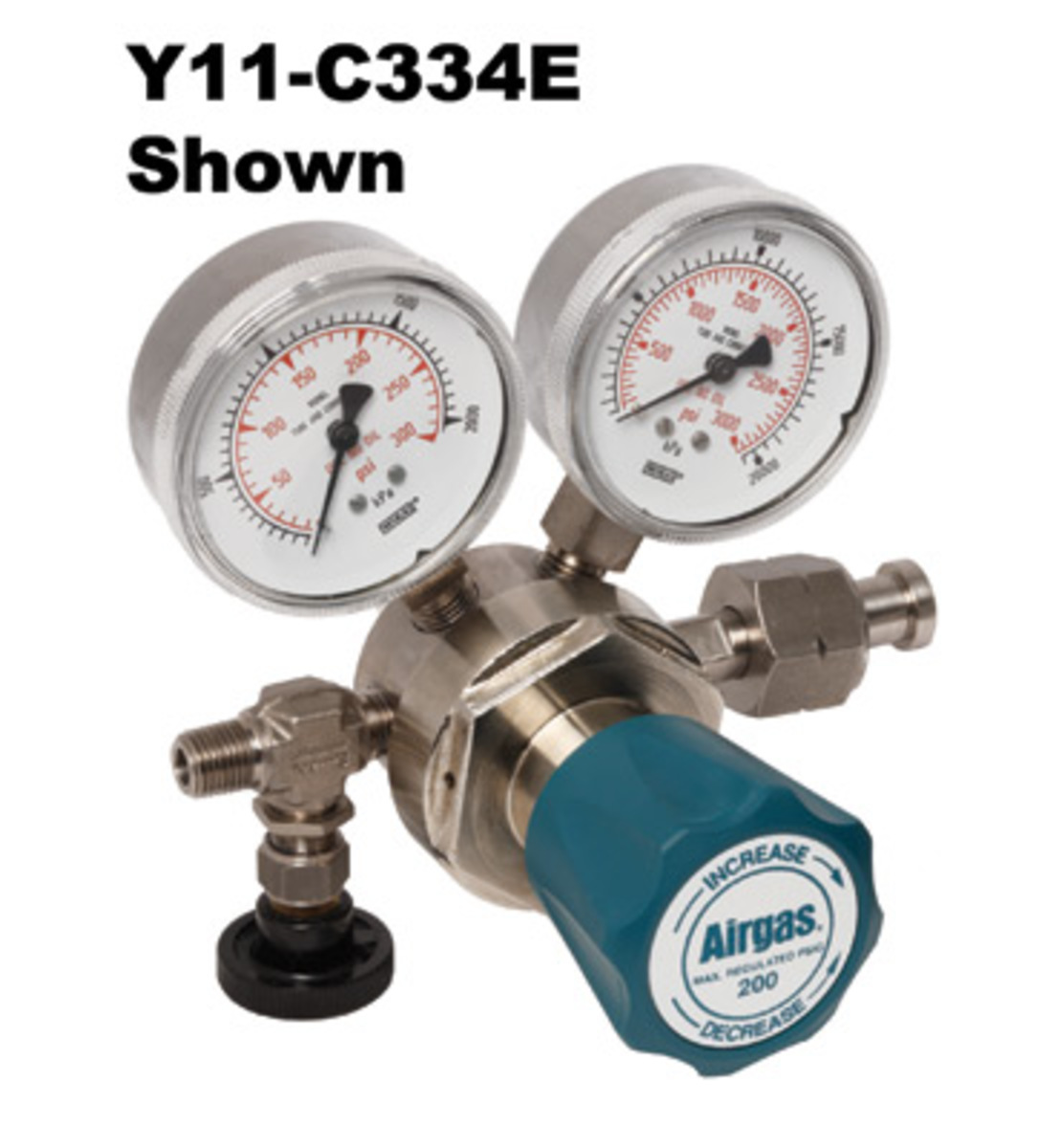

Airgas® Model C334C679 Monel Corrosive Service Single Stage Deluxe Model Regulator
Part Number: C334C679SKU: Y11C334C679-AG
$3,670.82
Item Details
Designed for the pressure control of corrosive halogen gases, the deluxe corrosive service regulators have all-wetted parts of either PCTFE, Iconel® or Monel materials and are protected internally by a sintered Monel filter. This model has a unique design that allows the regulator to be easily rebuilt. Note: A Cross-Purge Assembly must be used in conjunction with these models in order to ensure effective purging of hazardous gas traces during cylinder change out.Features
- Filtered Seat: For added gas stream purity and extended service life.
- PCFTE Seat: Provides wide range of media compatibility.
- Sintered Monel Filter: Protects parts, extends service life.
- 2 1/2" Monel Gauges: Permits accurate and easy reading.
- Easy Replacement Seat Assembly: Seat can be replaced easily by way of an extenal removable back cap.
- Note: Due to the corrosive nature of the gases used with this regulator, a cross purge assembly is required to maintain the warranty and for safety.
Specifications
- Macximum Inlet Pressure: 3,000 psig
- Capacity (scfh @ Max Del. Pressure): 200
- Type: Single Stage
- Inlet Gauge Range: 0 - 3,000 psig
- Delivery Gauge Range: 0 - 100 psig
- Outlet Pressure Range: 0 - 50 psig
- Flow Capacity: Cv= 0.08
- Ambient Operating Temperature: -20° F to +150° F
- Designed Leak Rate: Bubble-Tight (helium)
- Weight: 3.75 lbs
- Decay Inlet Characteristic: 0.35/100 psi
- Body: Monel
- Bonnet: Nickel-Plated Brass
- Seat: PCTFE
- Diaphragm: Monel
- Gauge: 2 1/2" Monel
- Filter: Sintered Monel
- Valve Stem: Monel
- Valve Spring: Iconel®
- Trim: Nickel-Plated Brass
