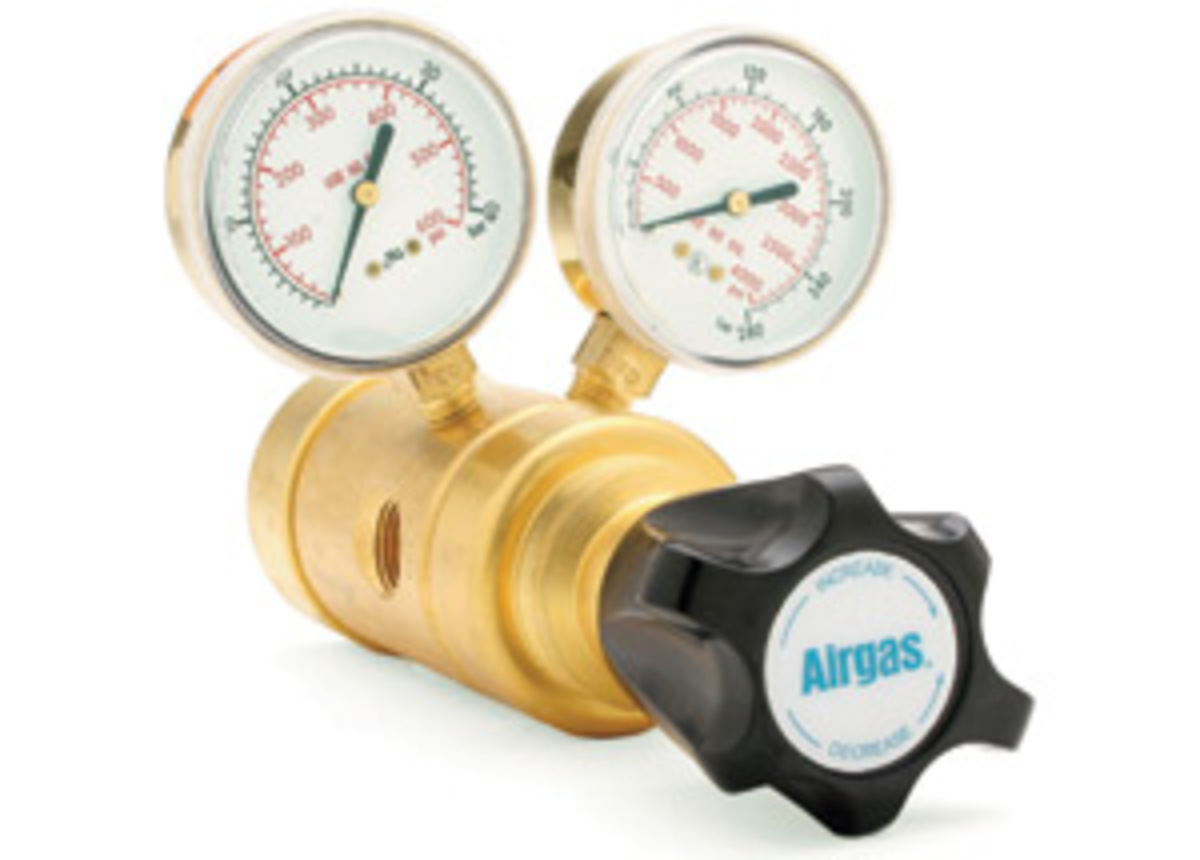

Airgas® Model 750500 Brass Laser Applications LaserPLUS™ High-Flow Dome-Loaded Regulator With 1/2" FNPT Connection
Part Number: 3000874SKU: Y11750500-AG
$1,270.56
Item Details
The Airgas® Special Service Laser Regulator is a high-flow dome-loaded regulator. This regulator has an integral remote sensing pilot which yields high flow capacity with near perfect performance, unique in a compact unit. Since this regulator is dome loaded by a remote sensing pilot regulator, it becomes a servo-regulator, and the overall performance is determined by the performance of the pilot regulator. This Laser Regulator is the key component in laser applications.Features
- Standard Encapsulated Seats - With 10-micron filters.
- Use with a Variety of Gases - argon, helium, nitrogen, oxygen.
- Tamper Proof - Self-reseating internal safety valve.
- Conforms to CGA-E-4 Standard - For use with gas pressure regulators.
- Panel Mounting Option - Bonnet threaded for mounting.
Specifications
- Maximum Inlet Pressure: 3,000 psig
- Maximum Outlet Pressure: 500 psig
- Outlet Gauge Range: 0 - 600 psig
- Capacity: 15,800 scfh @ Max Delivery Pressure
- Inlet Gauge Range: 0 - 4,000 psig
- Flow Capacity: Cv=0.55
- Decay Inlet Characteristics: 0.3/100 psi
- Ambient Operating Temperature: 70° F
- Designed Leak Rate: 1 x 10-5 scc/sec
- Weight: 8 lbs
- Ports: 1/4" FNPT
