RADNOR™ Model ST9 Harris® Heavy Duty Flowmeter Argon And Argon/CO2 Mix Flowmeter Regulator, CGA 580
Part Number: 3101102SKU: RAD64003866
$210.37
Item Details

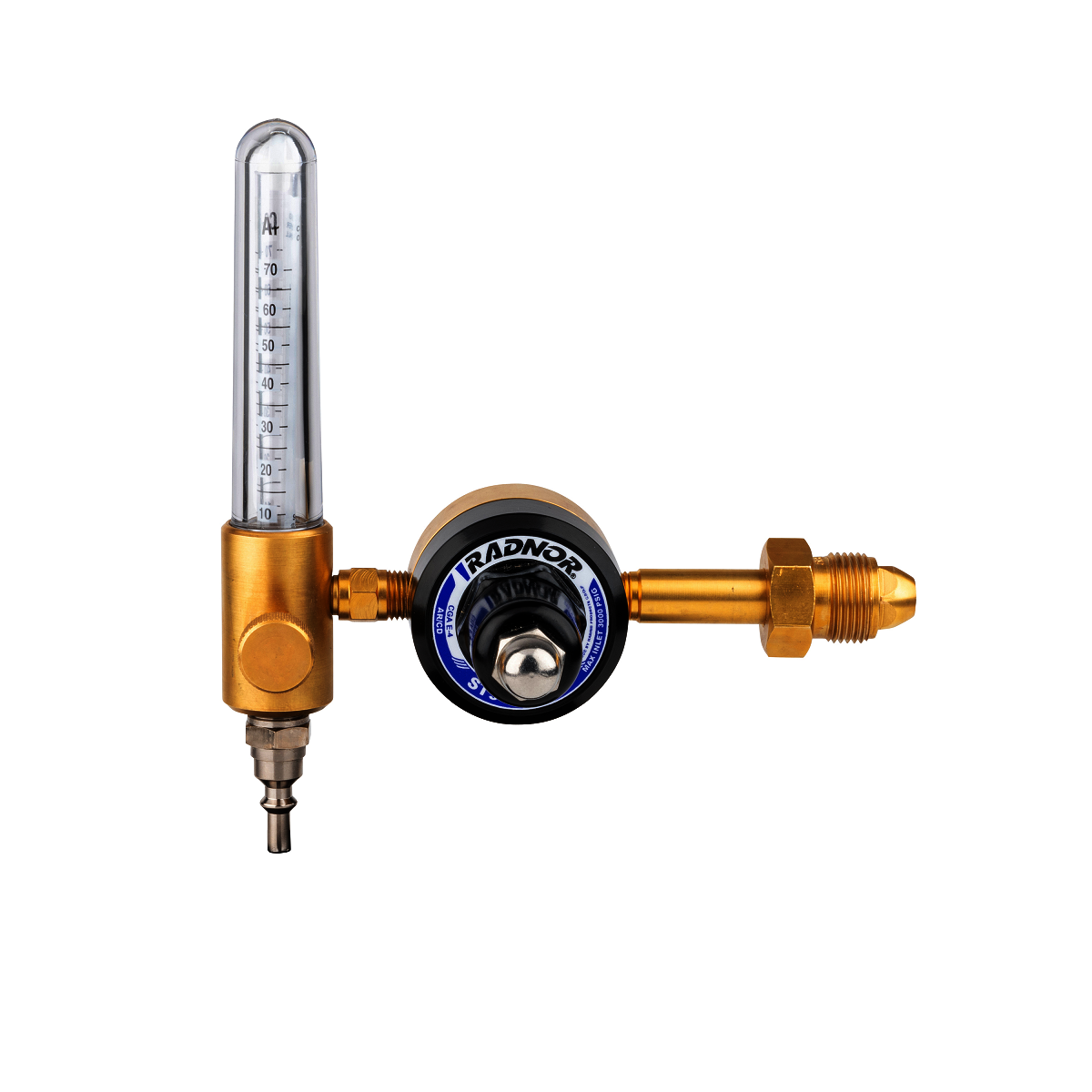

RADNOR™ Harris® Style Heavy Duty Pressure Compensated Flowmeter Regulator - Model ST9 - This flowmeter regulator incorporates a regulator and a flowmeter into one compact unit. It is pressure compensated to 20 PSIG and flows up to 70 SCFH. The ST9 flowmeter regulator is designed to control SMARTOP™ Argon, Cabon Dioxide Mixes and ARCAL™ shielding gases. The flow tube, with dual calibration, and float are easily changed for different gases. It includes a sensitive needle valve for fingertip control and durable, easy-to-read, flow tube and cover. This regulator features a brass body, one-piece encapsulated seat design with internal filter and PTFE Teflon® seat. It has an ISO 7289 male quick connect outlet connection. For vertical mounting only.Features
- ISO 7289 Quick connect outlet for easy teardown and setup
- Compensated to 20 psig
- Accurate flow control to 70 SCFH
- Regulator has a brass body and bonnet for longer service life
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- Neoprene diaphragm for better pressure control
- Brass screw for adjustments
- Sensitive needle valve for fingertip control permits highly accurate flow settings
- Durable cover and easy-to-read dual calibrated flow tube
Applications
- Gas-shielded welding
- Industrial applications
WARNING
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
