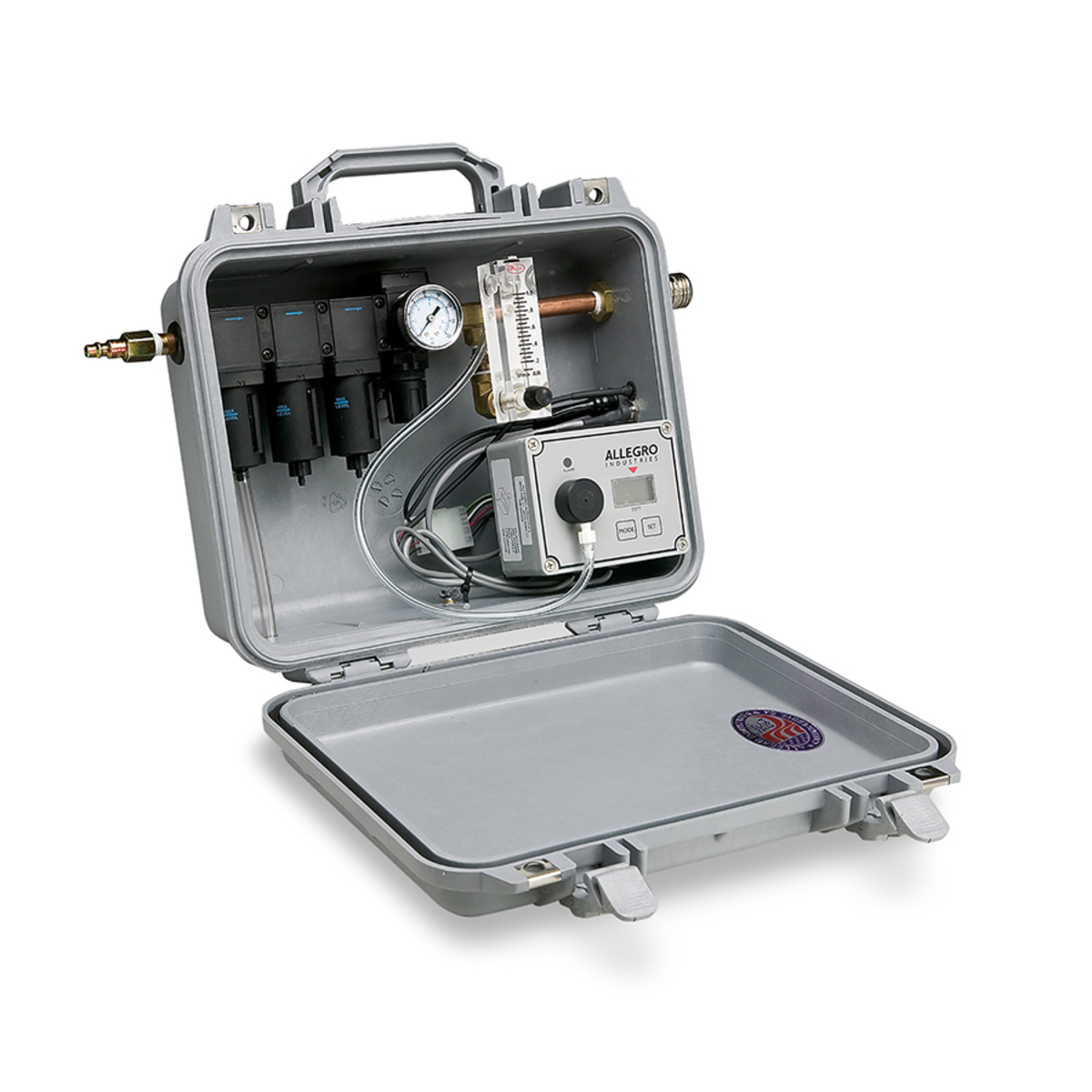

Allegro Industries CarryAir 15 CFM Filtration Panel

Item Details

• Allegro� Industries Carry-Air� 1-Worker 15 CFM Filtration Panel can be used for pneumatic tools/equipment to clean breathable air for an airline respirator and is housed in a portable, rugged pelican case. Panel filters air to remove impurities as well as hydrocarbons from an internally lubricated compressor and has a carbon monoxide monitor that provides continuous carbon monoxide levels. It includes 5 micron particulate filter element, 0.010 micron coalescing filter element and 0.003 micron activated carbon filter element. It has a 16-gauge powder coated steel stand that keeps the case upright when in use. It comes with a pressure regulator that includes a pressure gauge and adjustment knob with locking ring. It has an optional carbon monoxide monitor that can be operated in AC or DC mode and activates an audible alarm when the concentration of CO exceeds 10 ppm.

Features

• CONSTRUCTION: Housed in a portable, rugged case with carrying handle, latches for protection and security
• A 16 gauge powder coated steel stand, for support
• All brass plumbing with quick-disconnect Hansen couplers
• CO MONITOR: Power source: 115V AC to 9V DC power Adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC Adapter)
• Alarm Setting: 10 PPM (Canada: 5PPM)
• Calibration: Self adjusting calibration to 20 PPM CO
• FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain
• Second Stage: 0.010 micron coalescing filter element and manual drain
• Third Stage: 0.003 ppm activated carbon filter element and manual drain
• Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge, external relief valve set at 125 psi (8.62 bar)
• Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
